Simulation research of respiratory monitoring with magnetic detection electrical impedance tomography_Journal of Biomedical Engineering

Authors：

WANG Huiquan , YIN Jianli , LI Guangxu , FENG Yanbo , WANG Jinhai ,  CHEN Ruijuan

Tianjin Key Laboratory of Photoelectric Detection Technology and System, Tianjin Polytechnic University, Tianjin 300387, P.R.China;

Corresponding?author：

CHEN Ruijuan, Email: chenruijuan@tjpu.edu.cn

Keywords：

magnetic detection electrical impedance tomography; forward problem; finite element method; magnetic induction intensity

DOI：

10.7507/1001-5515.201604083

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

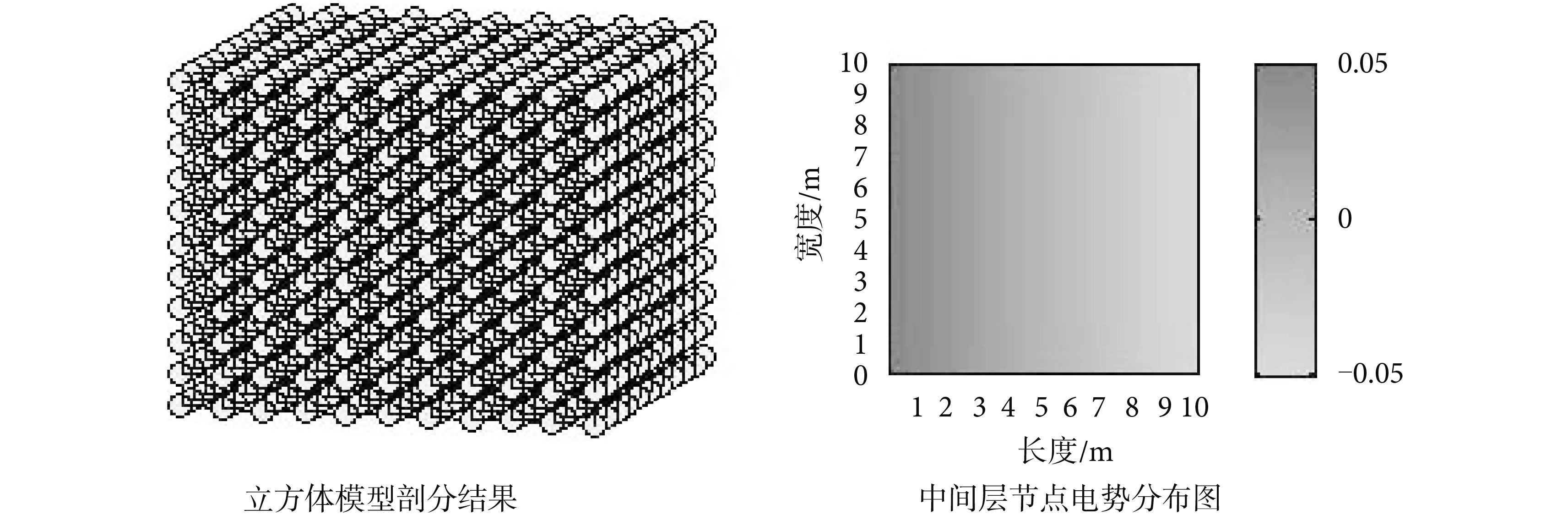

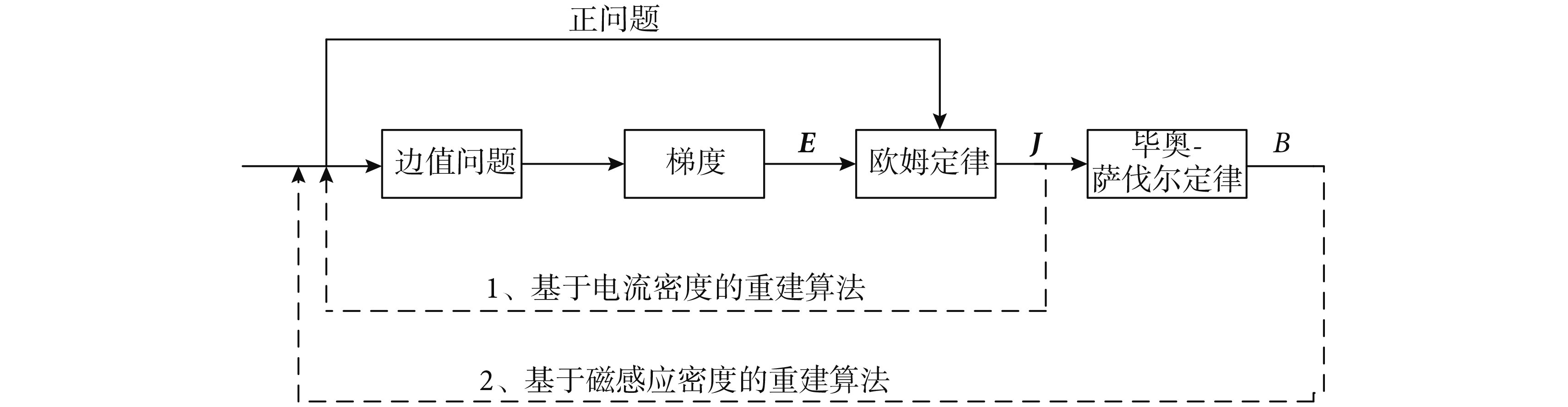

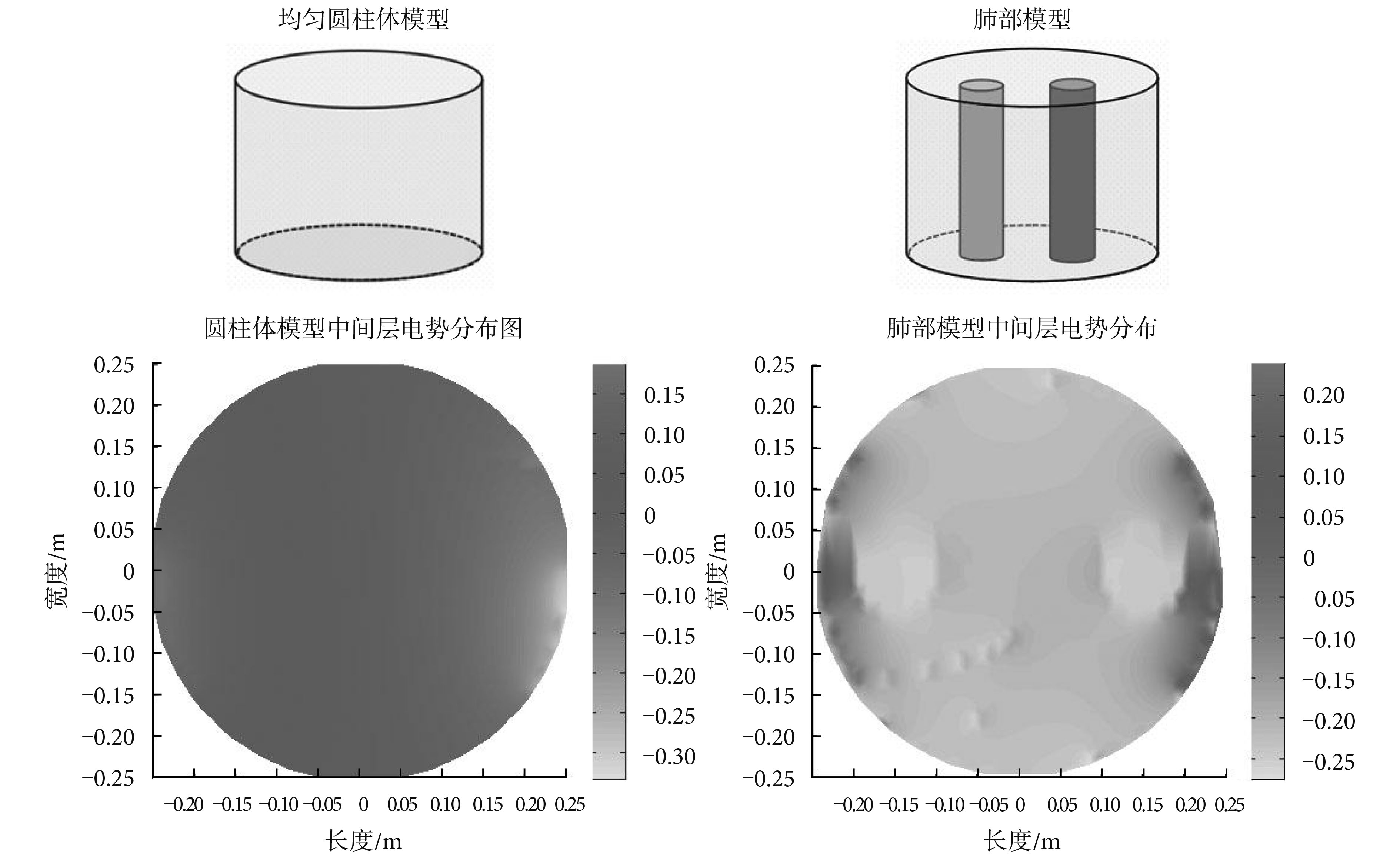

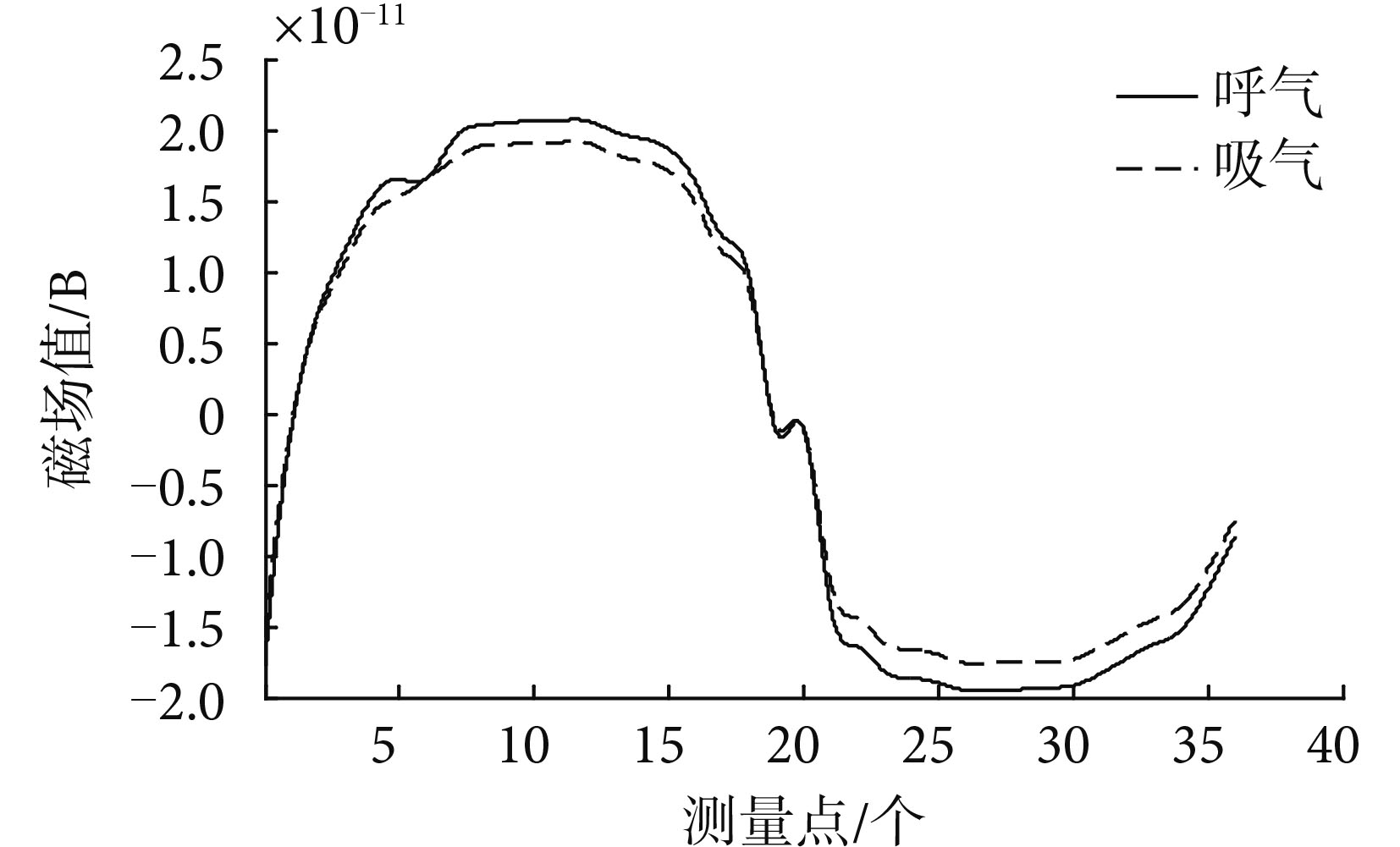

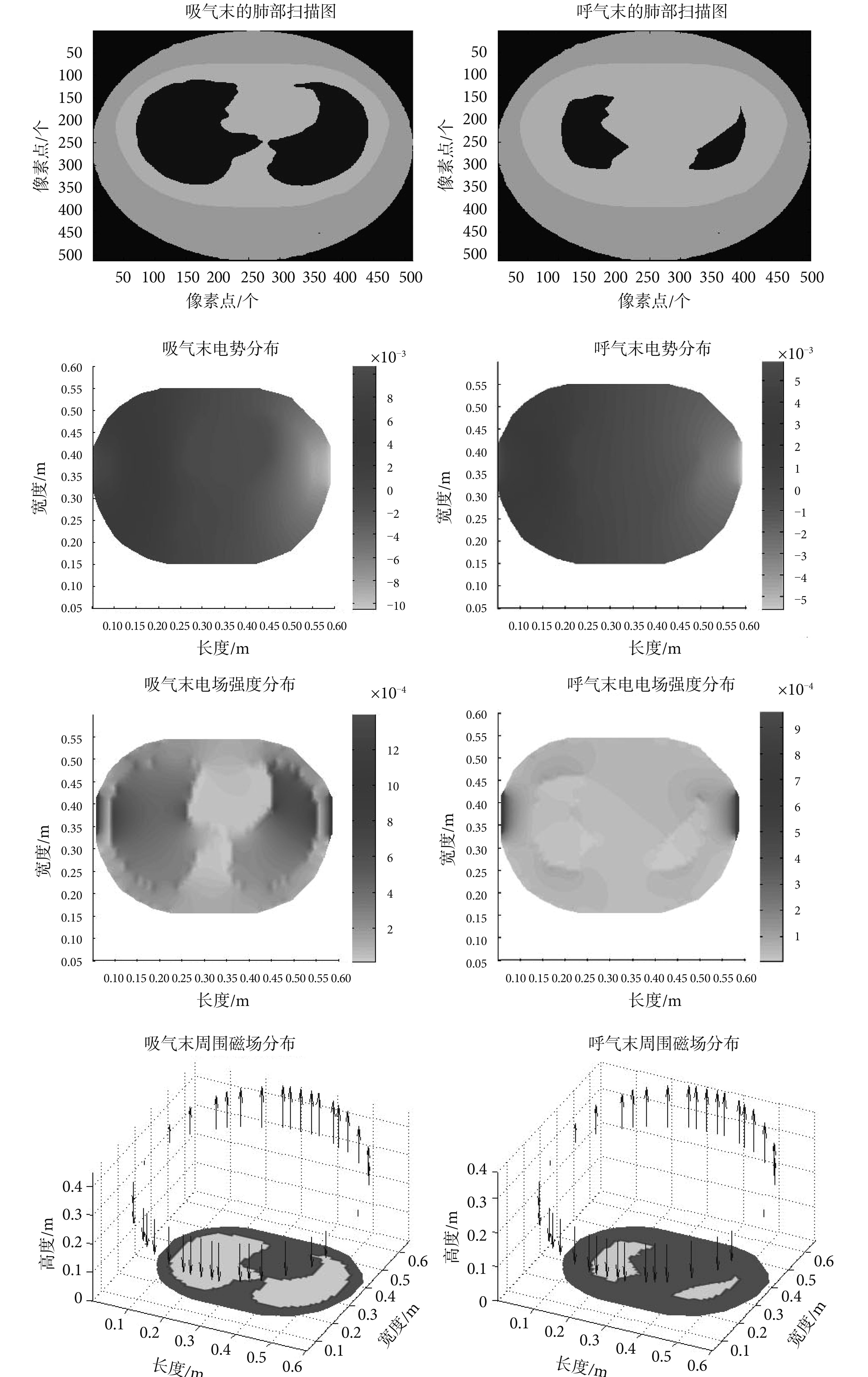

In order to explore the feasibility of applying magnetic detection electrical impedance tomography (MDEIT) on respiratory monitoring, aiming at the forward problem of magnetic detection electrical impedance tomography, we calculated the electric potential and current density distribution inside the imaging object by using the finite element method. We then got magnetic induction intensity outside the object at the end of exhaling and inhaling according to Biot-Savart's law. The results showed that the magnetic induction intensity at the end of inhaling was 8.875%, less than that at the end of exhaling. By the simulation results, we could understand the difference of magnetic induction intensity value surrounding the lung at the end of exhaling and inhaling due to the change of lung volume and electrical conductivity distribution better. Our research laid the foundation for the late image reconstruction and clinical disease detection.

Citation： WANGHuiquan, YINJianli, LIGuangxu, FENGYanbo, WANGJinhai, CHENRuijuan. Simulation research of respiratory monitoring with magnetic detection electrical impedance tomography. Journal of Biomedical Engineering, 2017, 34(1): 27-33. doi: 10.7507/1001-5515.201604083 Copy
