Biomarker extraction of sustained attention based on brain functional network_Journal of Biomedical Engineering

Authors：

JIA Wenxiao , SHAN Siyuan ,  ZHANG Jicong

School of Biological Science and Medical Engineering, Beihang University, Beijing 100191, P.R.China;

Corresponding?author：

ZHANG Jicong, Email: jicongzhang@buaa.edu.cn

Keywords：

wavelet coherence; force control task; sustained attention; brain functional network

DOI：

10.7507/1001-5515.201611045

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

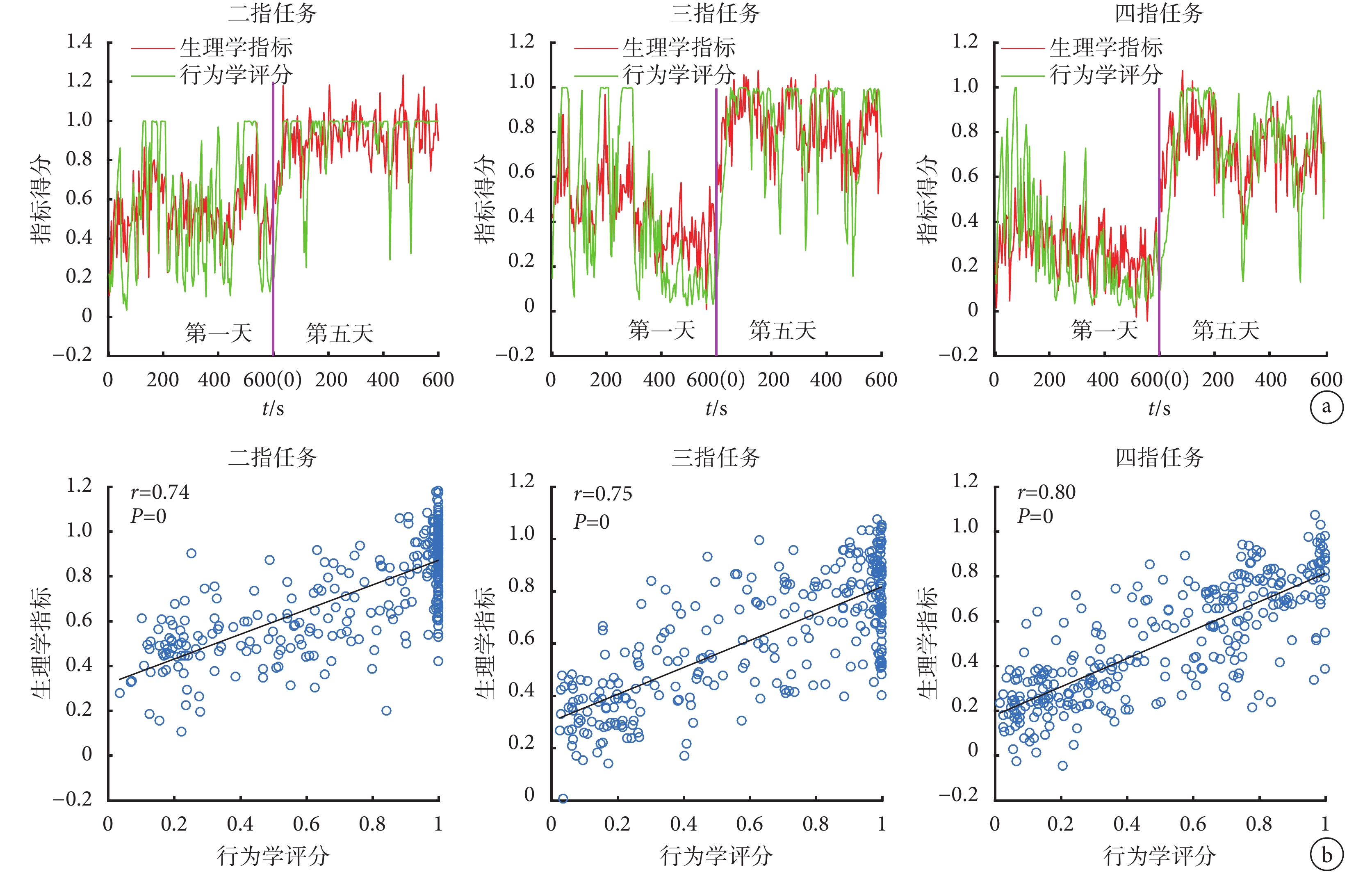

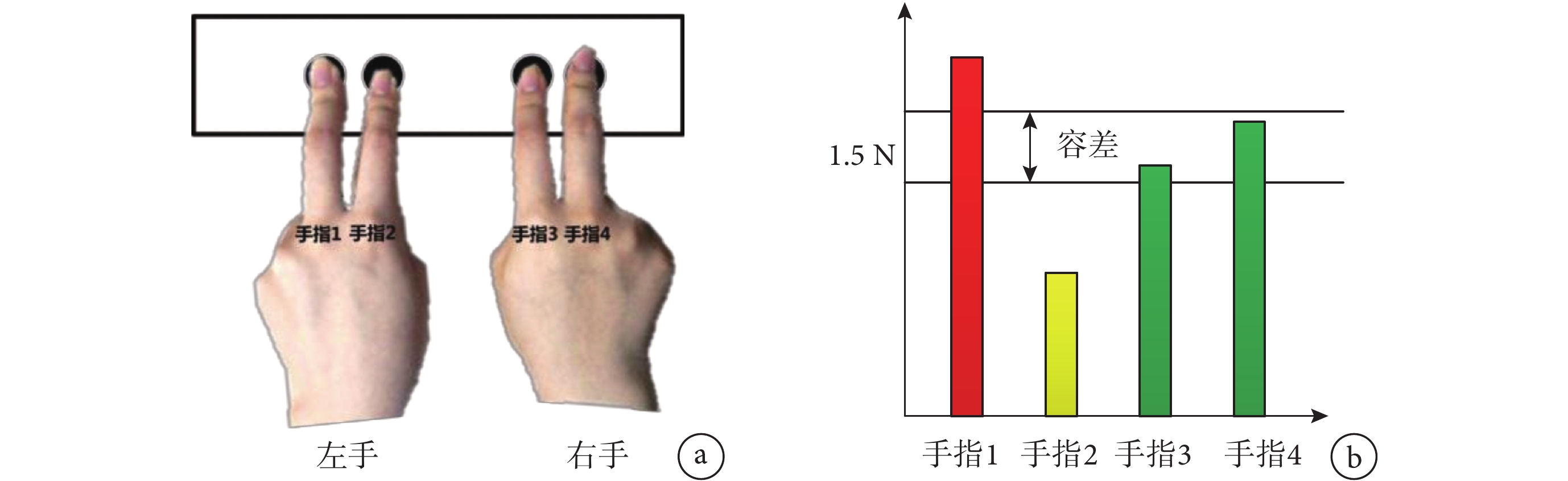

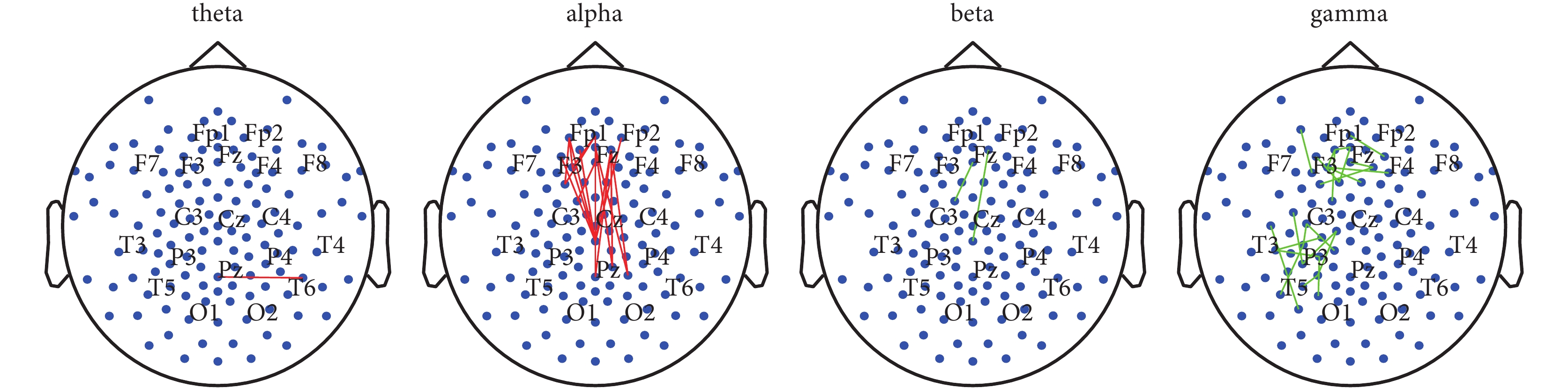

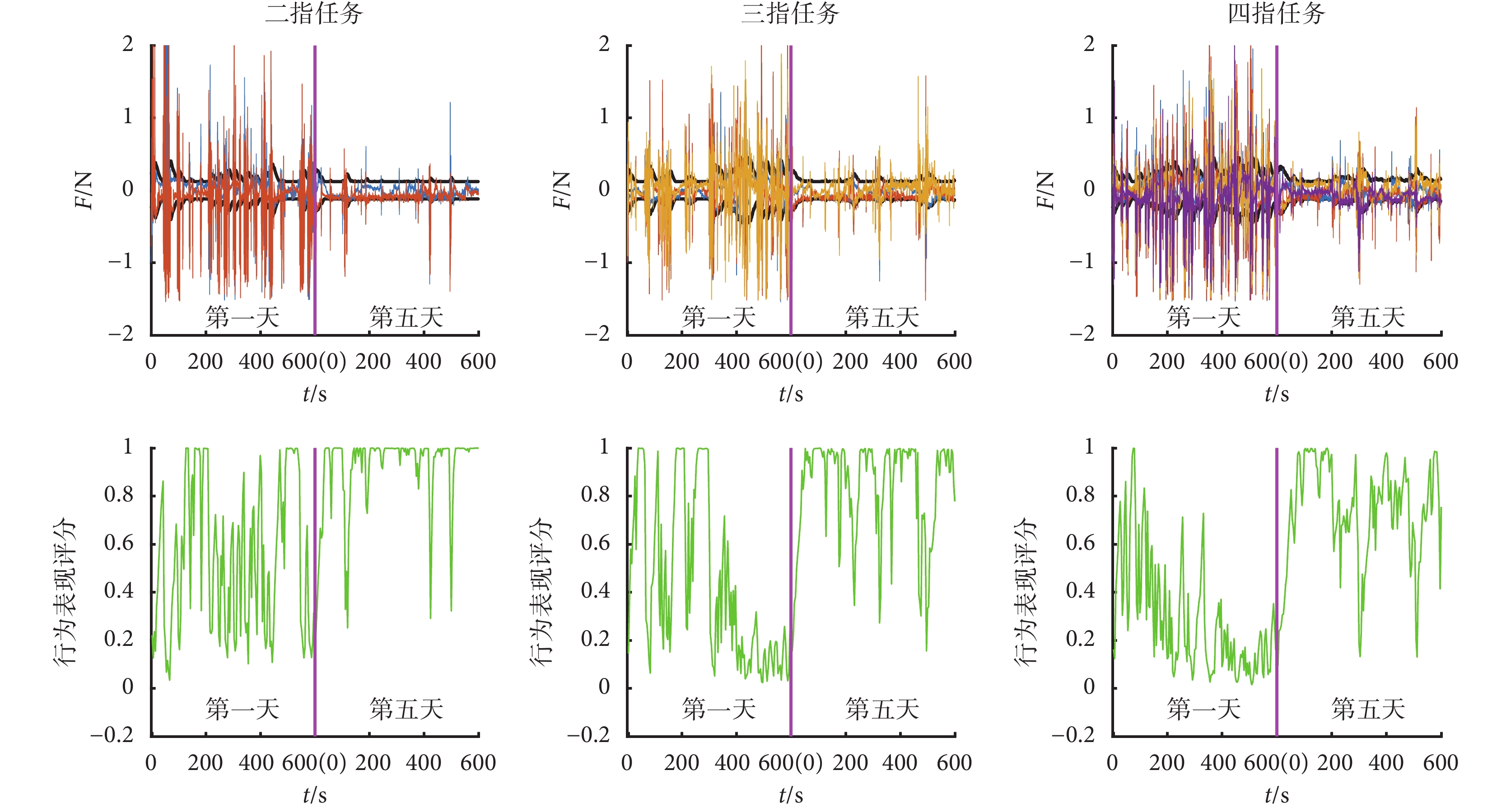

Although attention plays an important role in cognitive and perception, there is no simple way to measure one's attention abilities. We identified that the strength of brain functional network in sustained attention task can be used as the physiological indicator to predict behavioral performance. Behavioral and electroencephalogram (EEG) data from 14 subjects during three force control tasks were collected in this paper. The reciprocal of the product of force tolerance and variance were used to calculate the score of behavioral performance. EEG data were used to construct brain network connectivity by wavelet coherence method and then correlation analysis between each edge in connectivity matrices and behavioral score was performed. The linear regression model combined those with significantly correlated network connections into physiological indicator to predict participant's performance on three force control tasks, all of which had correlation coefficients greater than 0.7. These results indicate that brain functional network strength can provide a widely applicable biomarker for sustained attention tasks.

Citation： JIA Wenxiao, SHAN Siyuan, ZHANG Jicong. Biomarker extraction of sustained attention based on brain functional network. Journal of Biomedical Engineering, 2018, 35(2): 176-181. doi: 10.7507/1001-5515.201611045 Copy

1.	姚小芳, 方小燕, 黃曉艷. 鐵缺乏癥學齡兒童注意力缺陷多動障礙認知行為訓練的效果研究. 護理實踐與研究, 2017, 14(12): 83-85.
2.	Arnsten A F. Fundamentals of attention-deficit/hyperactivity disorder: circuits and pathways. J Clin Psychiatry, 2006, 67(Suppl 8): 7-12.
3.	郭潤蒲, 杜亞松. 注意缺陷多動障礙相關腦網絡結構及功能磁共振研究進展. 中國神經精神疾病雜志, 2016, 42(9): 556-559.
4.	Bonnelle V, Leech R, Kinnunen K M, et al. Default mode network connectivity predicts sustained attention deficits after traumatic brain injury. J Neurosci, 2011, 31(38): 13442-13451.
5.	Rosenberg M D, Finn E S, Scheinost D, et al. A neuromarker of sustained attention from whole-brain functional connectivity. Nat Neurosci, 2016, 19(1): 165-171.
6.	Clayton M S, Yeung N, Cohen Kadosh R. The roles of cortical oscillations in sustained attention. Trends Cogn Sci, 2015, 19(4): 188-195.
7.	de Vico Fallani F, Astolfi L, Cincotti F, et al. Evaluation of the brain network organization from EEG signals: a preliminary evidence in stroke patient. Anat Rec (Hoboken), 2009, 292(12): 2023-2031.
8.	Li Ling, Jin Zhenlan, Li Bin. Analysis of a phase synchronized functional network based on the rhythm of brain activities. Chin Phys B, 2011, 20(3): 512-518.
9.	Bowyer S M. Coherence a measure of the brain networks: past and present. Neuropsychiatric Electrophysiology, 2016, 2(1): 1-12.
10.	Li Xiaowei, Jing Zhuang, Hu Bin, et al. An EEG-based study on coherence and brain networks in mild depression cognitive process//2016 IEEE International Conference on Bioinformatics and Biomedicine (BIBM). Shenzhen, China: IEEE, 2016: 1275-1282.
11.	Tyagi R. EEG coherence biomarkers for differentiating attention states. Singapore: National University of Singapore, 2014.
12.	張方風. 大腦功能連接的復雜網絡研究. 北京: 對外經濟貿易大學出版社, 2011.
13.	梁夏, 王金輝, 賀永. 人腦連接組研究: 腦結構網絡和腦功能網絡. 科學通報, 2010, 55(16): 1565-1583.
14.	單炎炎, 賈艷濱, 李雪果, 等. 注意缺陷多動障礙的腦網絡連接研究進展. 中華精神科雜志, 2017, 50(3): 235-238.
15.	Anguera J A, Boccanfuso J, Rintoul J L, et al. Video game training enhances cognitive control in older adults. Nature, 2013, 501(7465): 97-101.
16.	Ciaramelli E, Grady C, Levine B, et al. Top-down and bottom-up attention to memory are dissociated in posterior parietal cortex: neuroimaging and neuropsychological evidence. J Neurosci, 2010, 30(14): 4943-4956.
17.	Baluchi F, Itti L. Mechanisms of top-down attention. Trends Neurosci, 2011, 34(4): 210-224.
18.	Sarter M, Givens B, Bruno J P. The cognitive neuroscience of sustained attention: where top-down meets bottom-up. Brain Res Rev, 2001, 35(2): 146-160.
19.	Marshall T R, Bergmann T O, Jensen O. Frontoparietal structural connectivity mediates the top-down control of neuronal synchronization associated with selective attention. PLoS Biol, 2015, 13(10): e1002272.
20.	Scolari M, Seidl-Rathkopf K N, Kastner S. Functions of the human frontoparietal attention network: Evidence from neuroimaging. Current Opinion in Behavioral Sciences. 2015, 1: 32-39.
21.	Esterman M, Noonan S K, Rosenberg M, et al. In the zone or zoning out? Tracking behavioral and neural fluctuations during sustained attention. Cereb Cortex, 2013, 23(11): 2712-2723.
22.	deBettencourt M T, Cohen J D, Lee R F, et al. Closed-loop training of attention with real-time brain imaging. Nat Neurosci, 2015, 18(3): 470-475.
23.	于洪麗, 徐桂芝, 付靈弟, 等. 基于腦電圖的不同頻率磁刺激內關穴腦網絡分析. 中國生物醫學工程學報, 2016, 35(6): 749-753.
