Experimental study of the response of articular cartilage surface roughness to load_Journal of Biomedical Engineering

Authors：

 MEN Yutao ^1,2 , LIU Kaifeng ^1,2 , LIU Fulong ^1,2 , ZHANG Chunqiu ^1,2

1. Tianjin Key Laboratory for Advanced Mechatronic System Design and Intelligent Control, School of Mechanical Engineering, Tianjin University of Technology, Tianjin 300384, P. R. China;
2. National Demonstration Center for Experimental Mechanical and Electrical Engineering Education (Tianjin University of Technology), Tianjin 300384, P. R. China;

Corresponding?author：

MEN Yutao, Email: yutaomen@163.com

Keywords：

Articular cartilage; Surface roughness; Loading; Wear

DOI：

10.7507/1001-5515.202109073

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

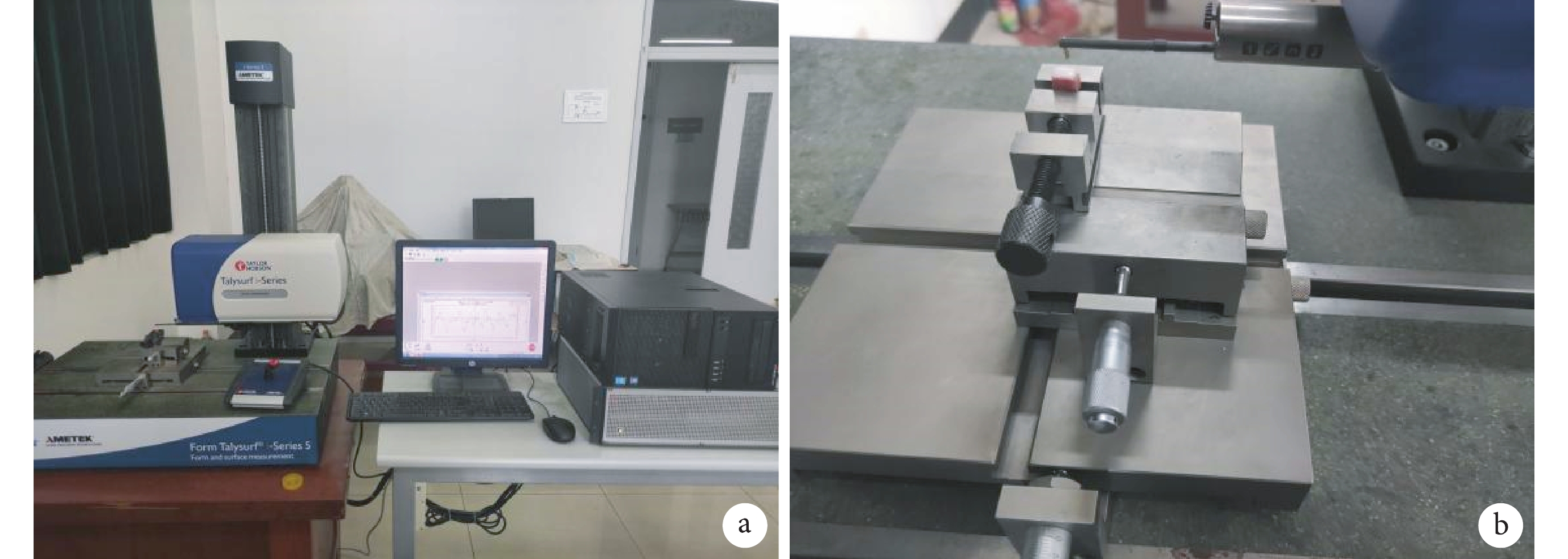

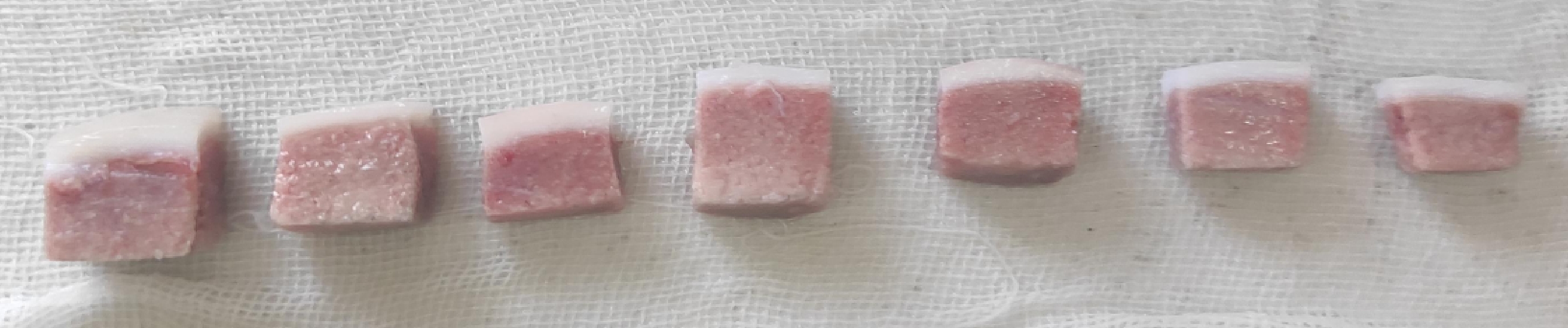

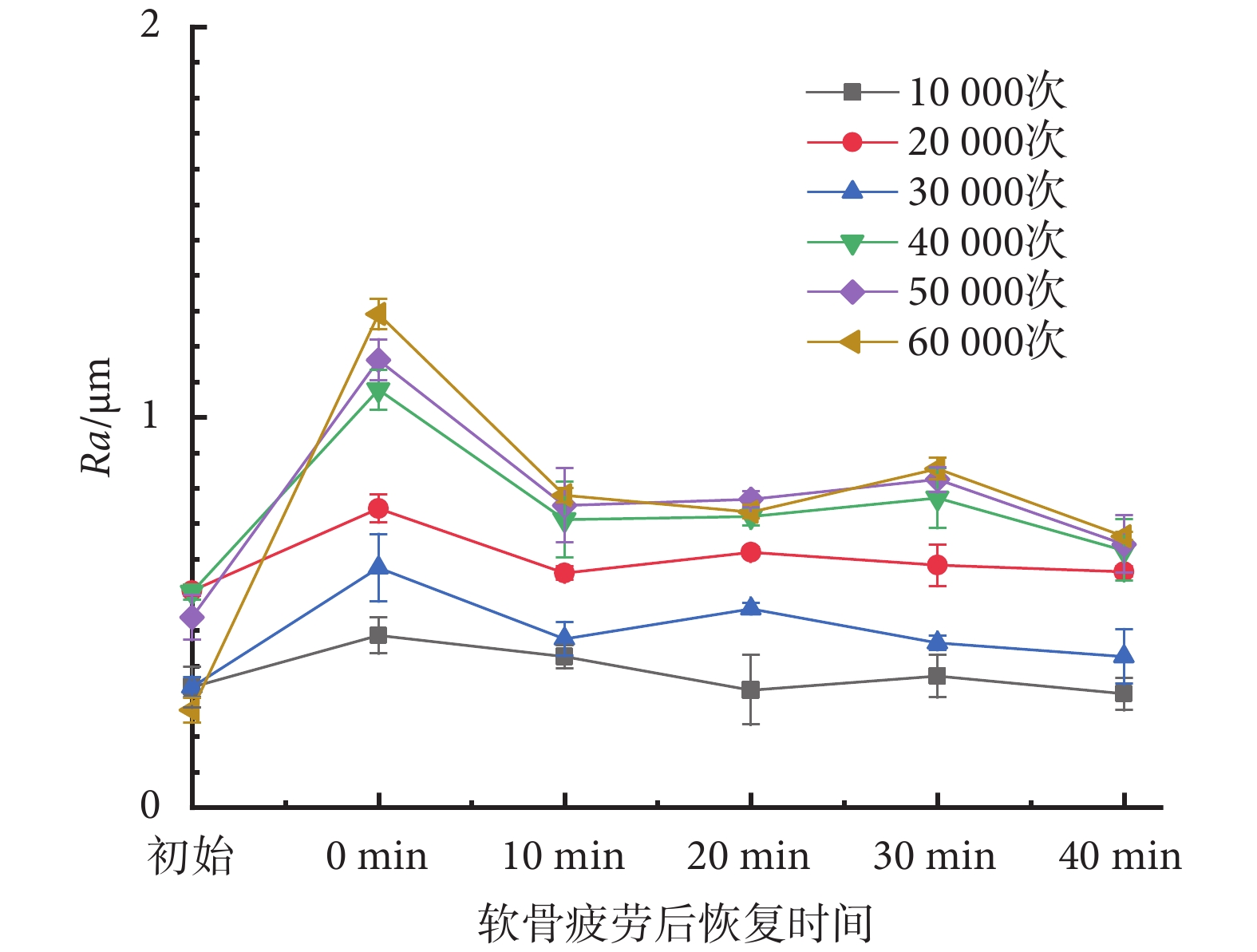

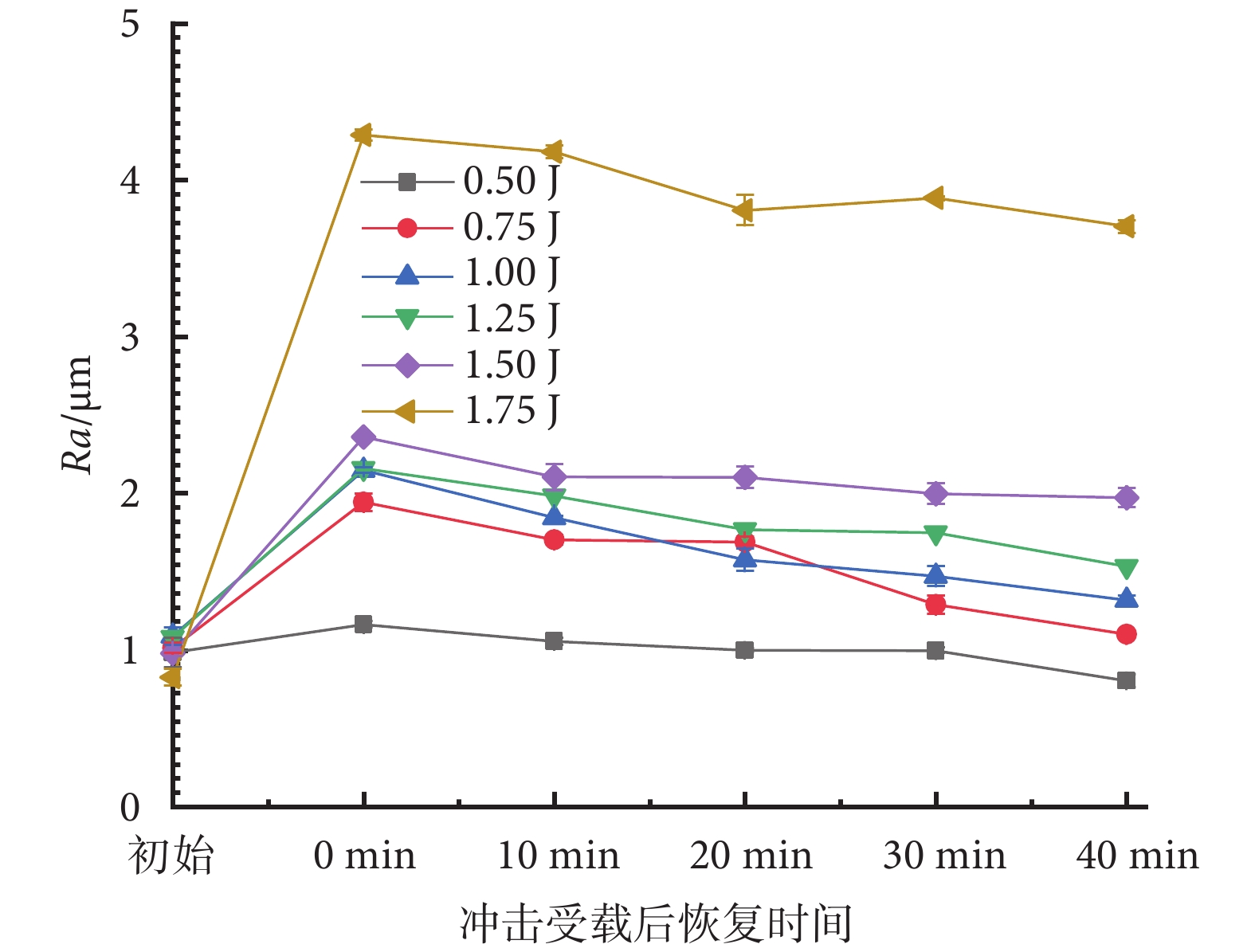

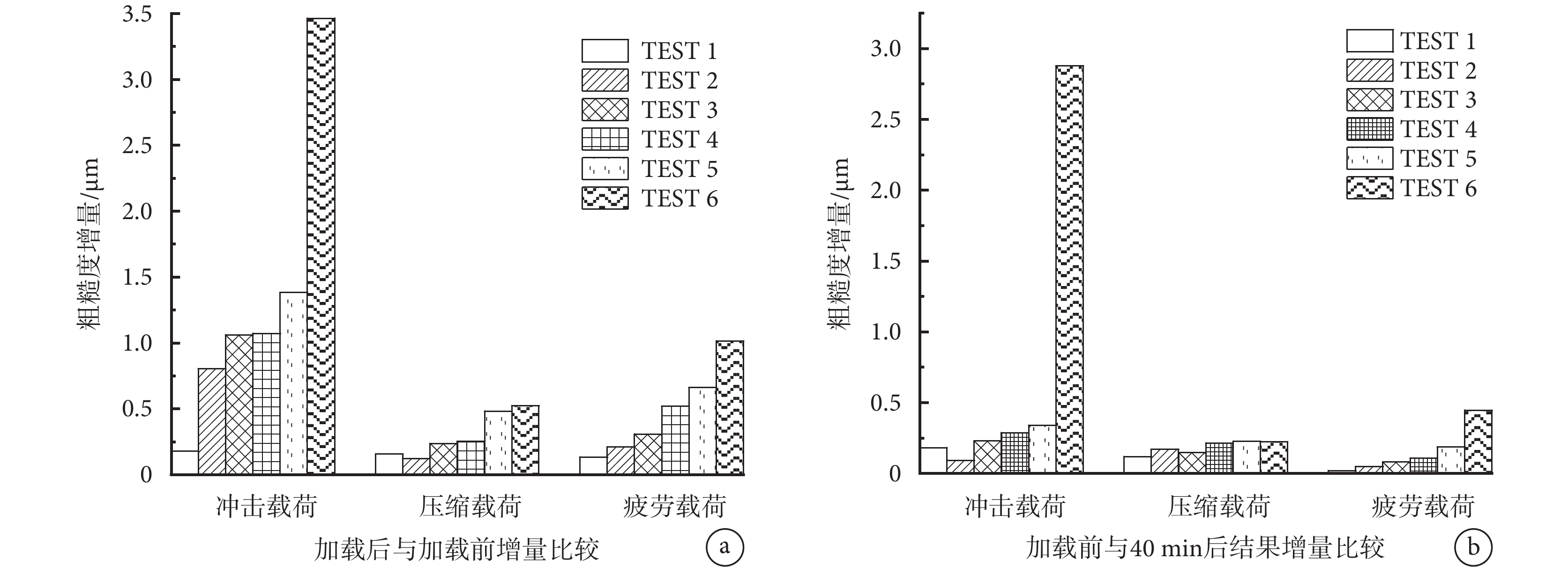

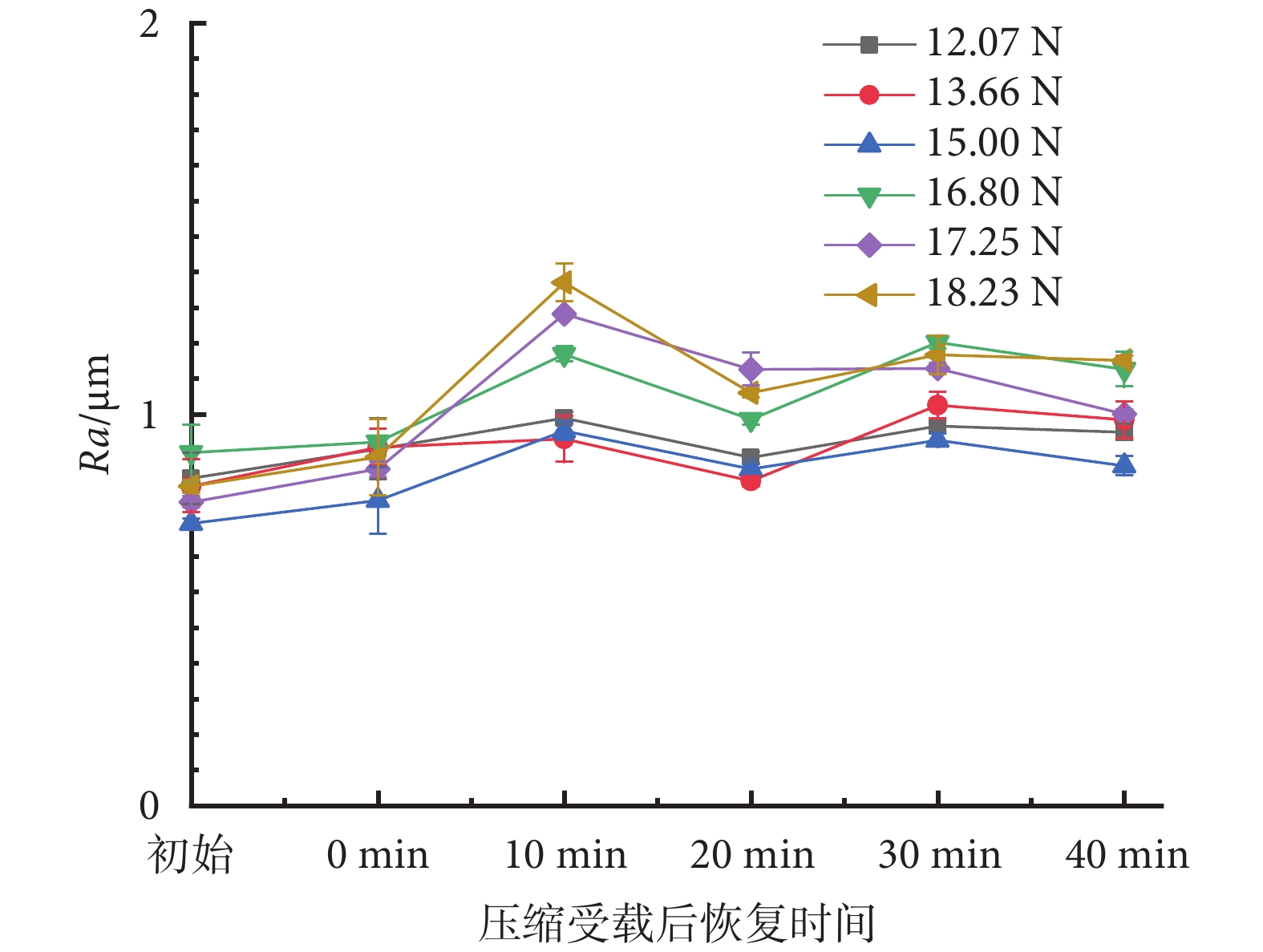

Cartilage surface fibrosis is an early sign of osteoarthritis and cartilage surface damage is closely related to load. The purpose of this study was to study the relationship between cartilage surface roughness and load. By applying impact, compression and fatigue loads on fresh porcine articular cartilage, the rough value of cartilage surface was measured at an interval of 10 min each time and the change rule of roughness before and after loading was obtained. It was found that the load increased the roughness of cartilage surface and the increased value was related to the load size. The time of roughness returning to the initial condition was related to the load type and the load size. The impact load had the greatest influence on the roughness of cartilage surface, followed by the severe fatigue load, compression load and mild fatigue load. This article provides reference data for revealing the pathogenesis of early osteoarthritis and preventing and treating articular cartilage diseases.

Citation： MEN Yutao, LIU Kaifeng, LIU Fulong, ZHANG Chunqiu. Experimental study of the response of articular cartilage surface roughness to load. Journal of Biomedical Engineering, 2022, 39(2): 347-352. doi: 10.7507/1001-5515.202109073 Copy
