Follow control of upper limb rehabilitation training based on Kinect and NAO robot_Journal of Biomedical Engineering

Authors：

LIU Xiaoguang ^1,2 , LI Simin ^1,2 , LIANG Tie ^1,2 , LI Jun ^1,2 , LOU Cunguang ^1,2 , WANG Hongrui ^1,2 ,  LIU Xiuling ^1,2

1. College of Electronic and Information Engineering, Hebei University, Baoding, Hebei 071002, P. R. China;
2. Key Laboratory of Digital Medical Engineering of Hebei Province, Baoding, Hebei 071002, P. R. China;

Corresponding?author：

LIU Xiuling, Email: liuxiuling121@hotmail.com

Keywords：

Kinect; Follow control; NAO; Inverse kinematics; Median filter

DOI：

10.7507/1001-5515.202111009

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

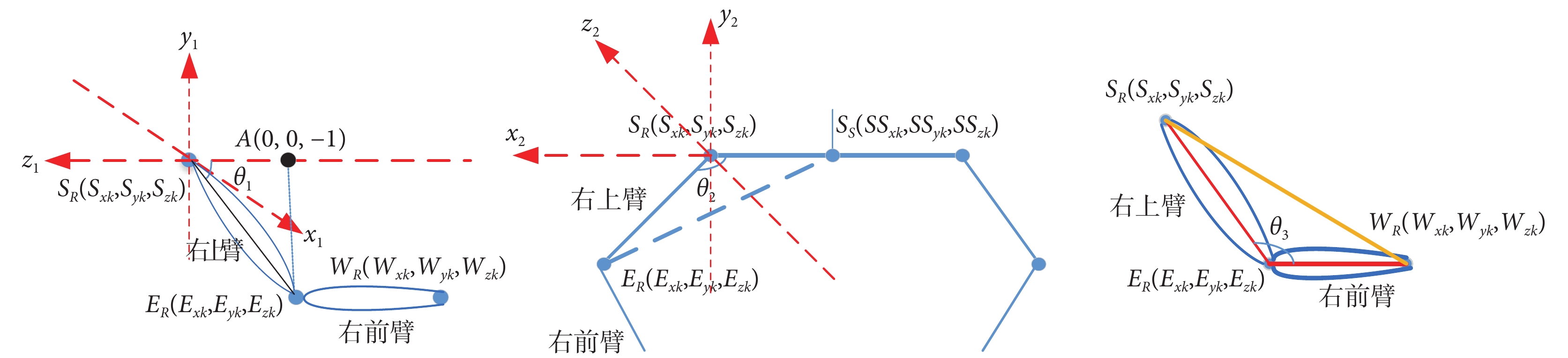

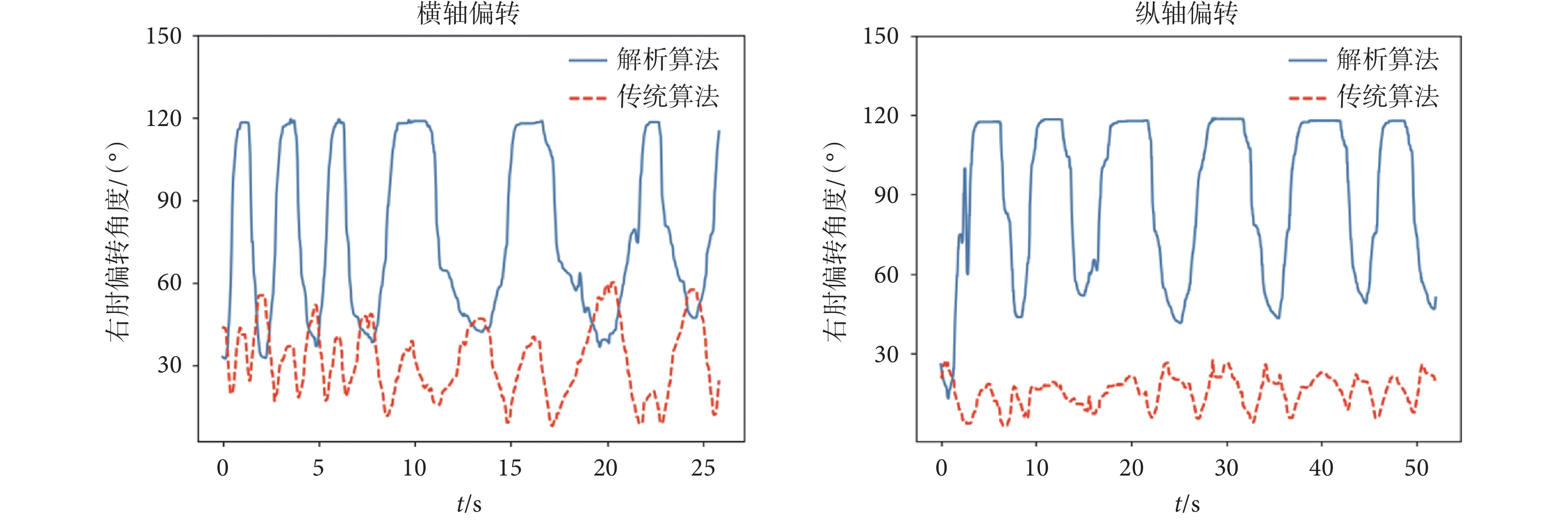

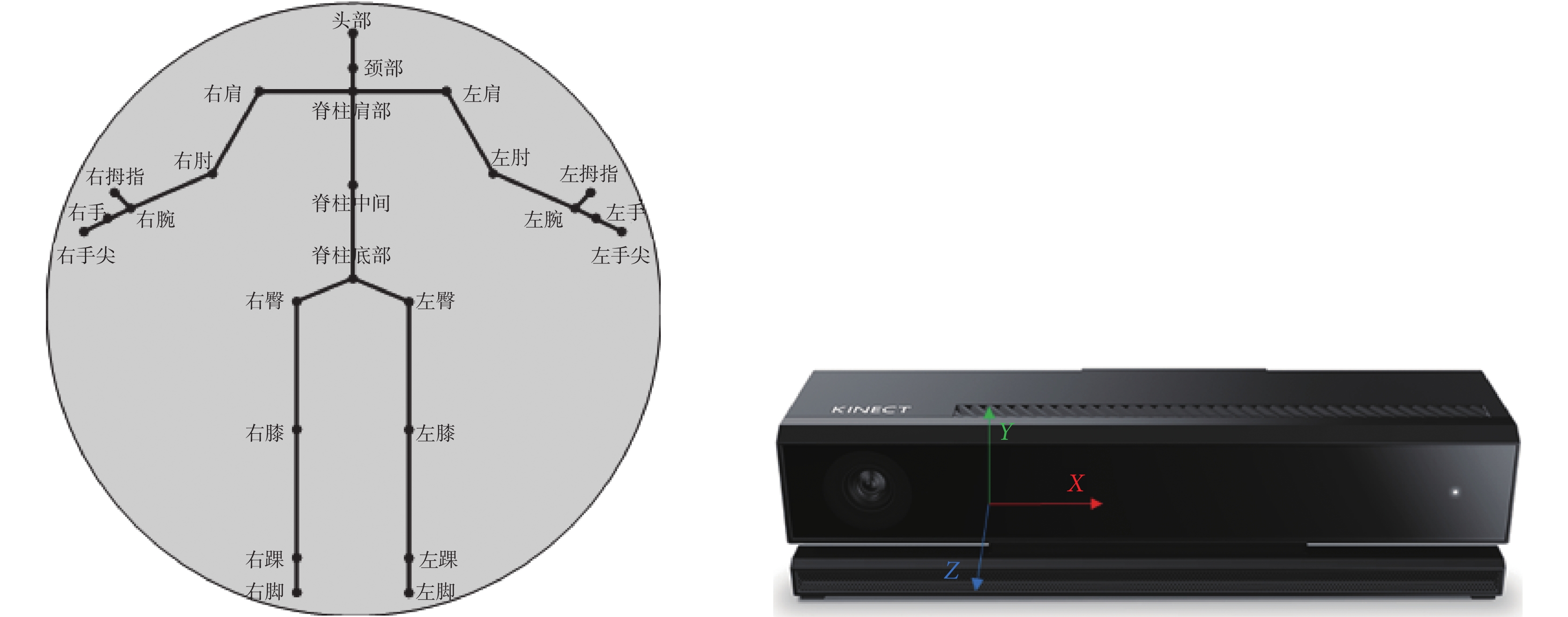

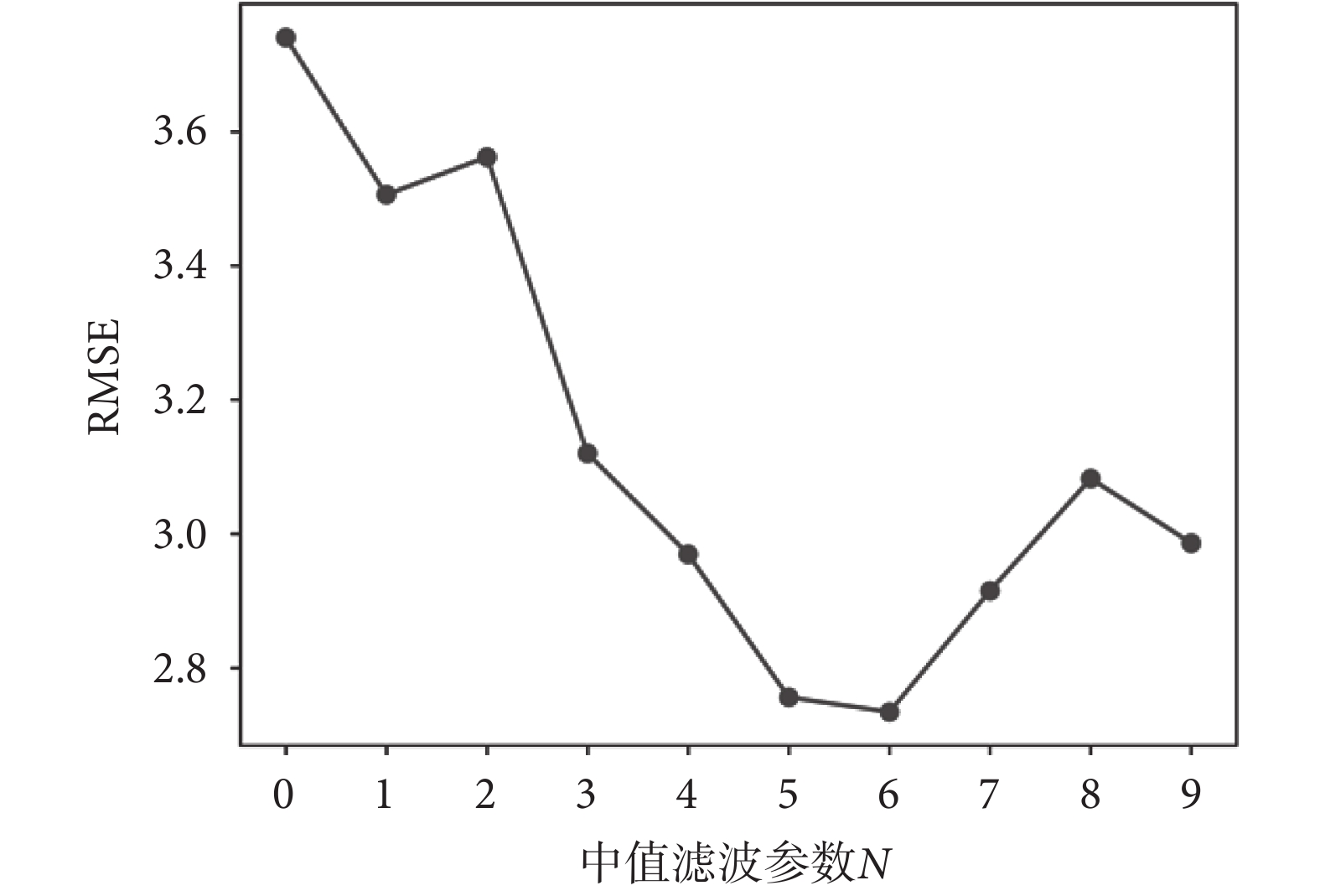

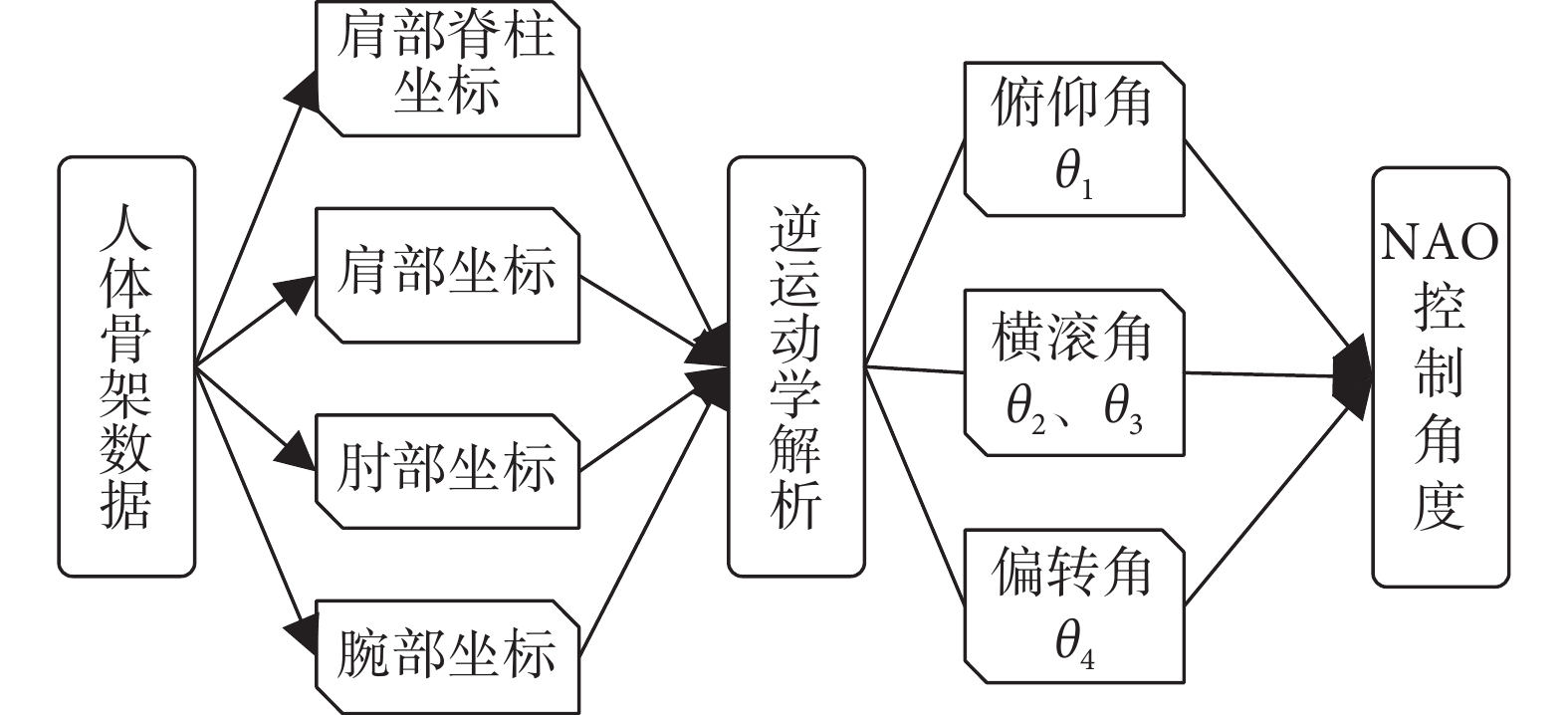

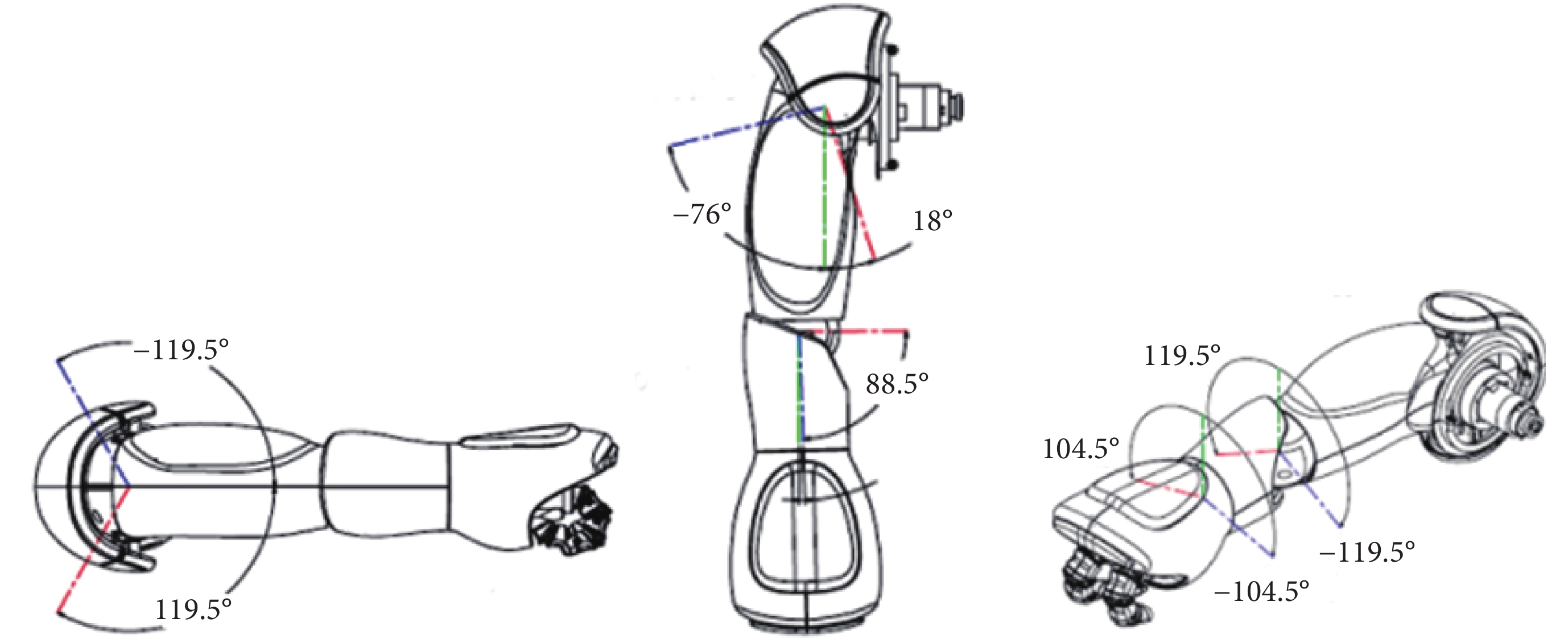

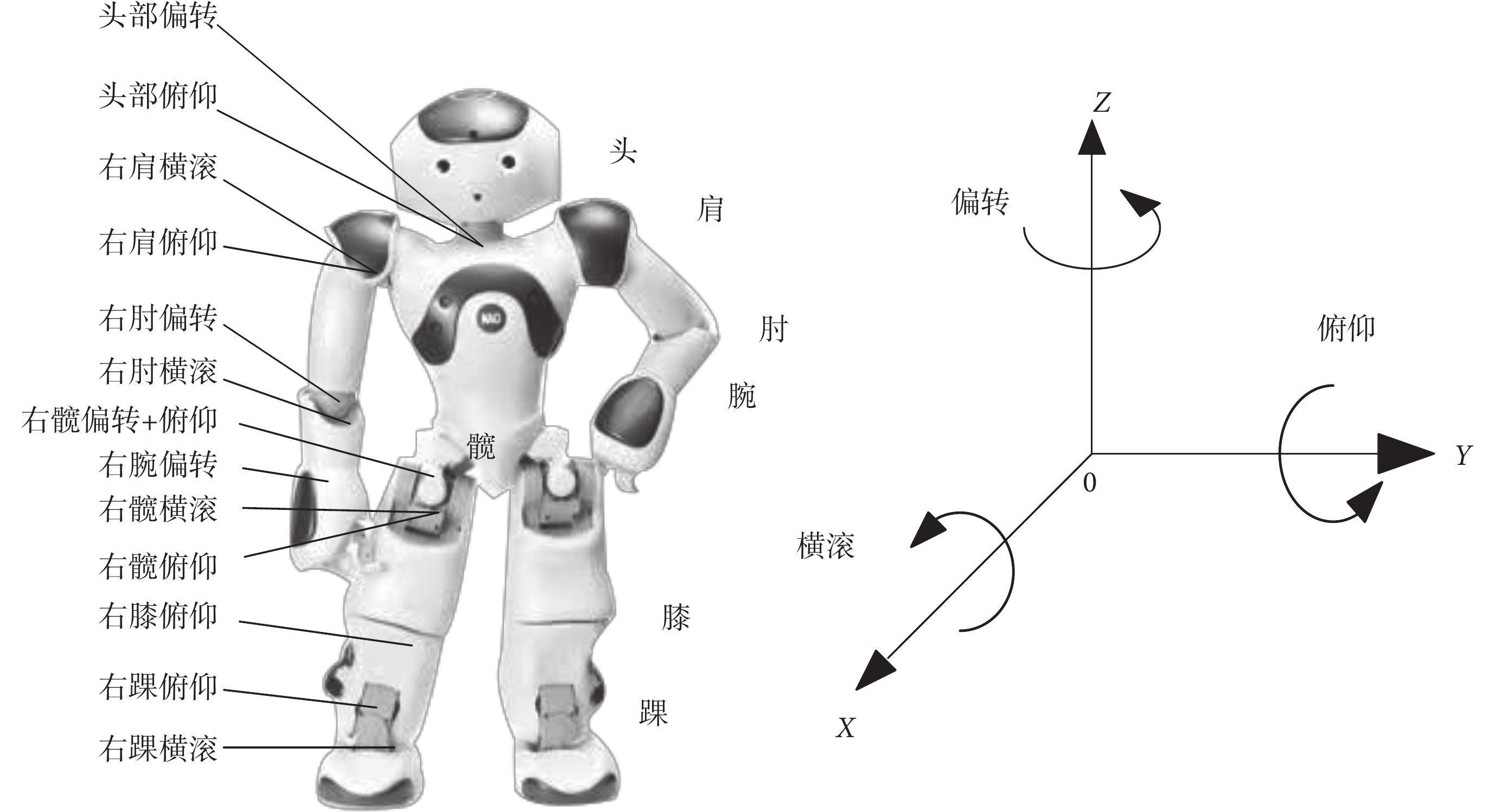

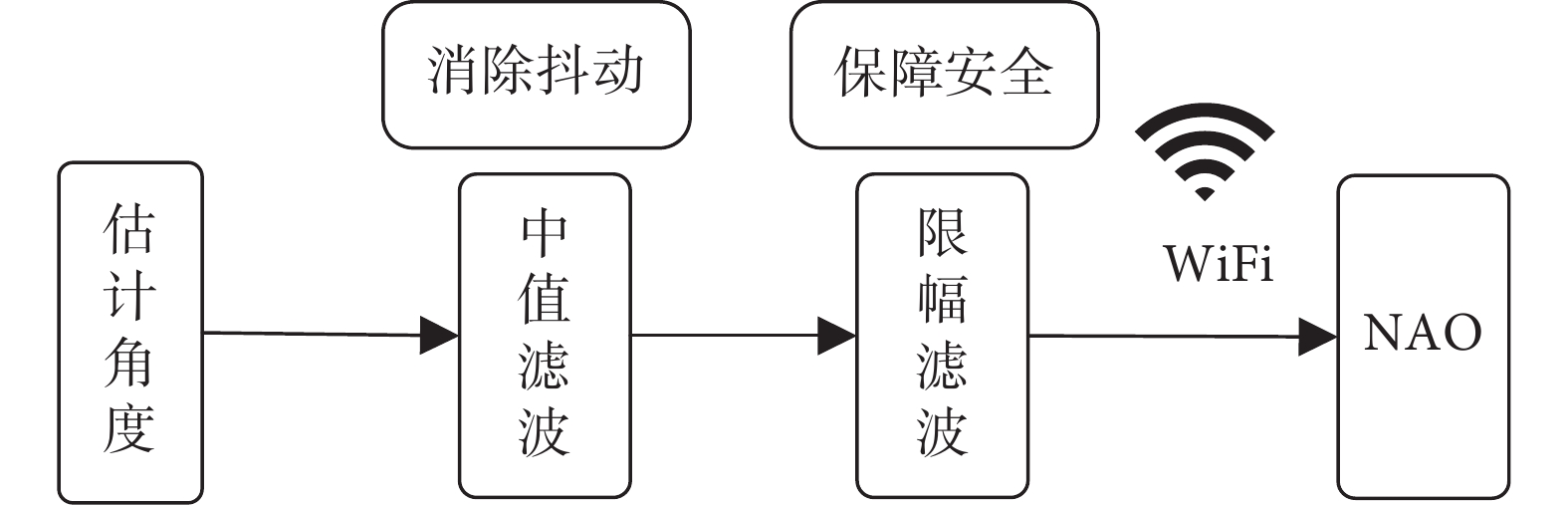

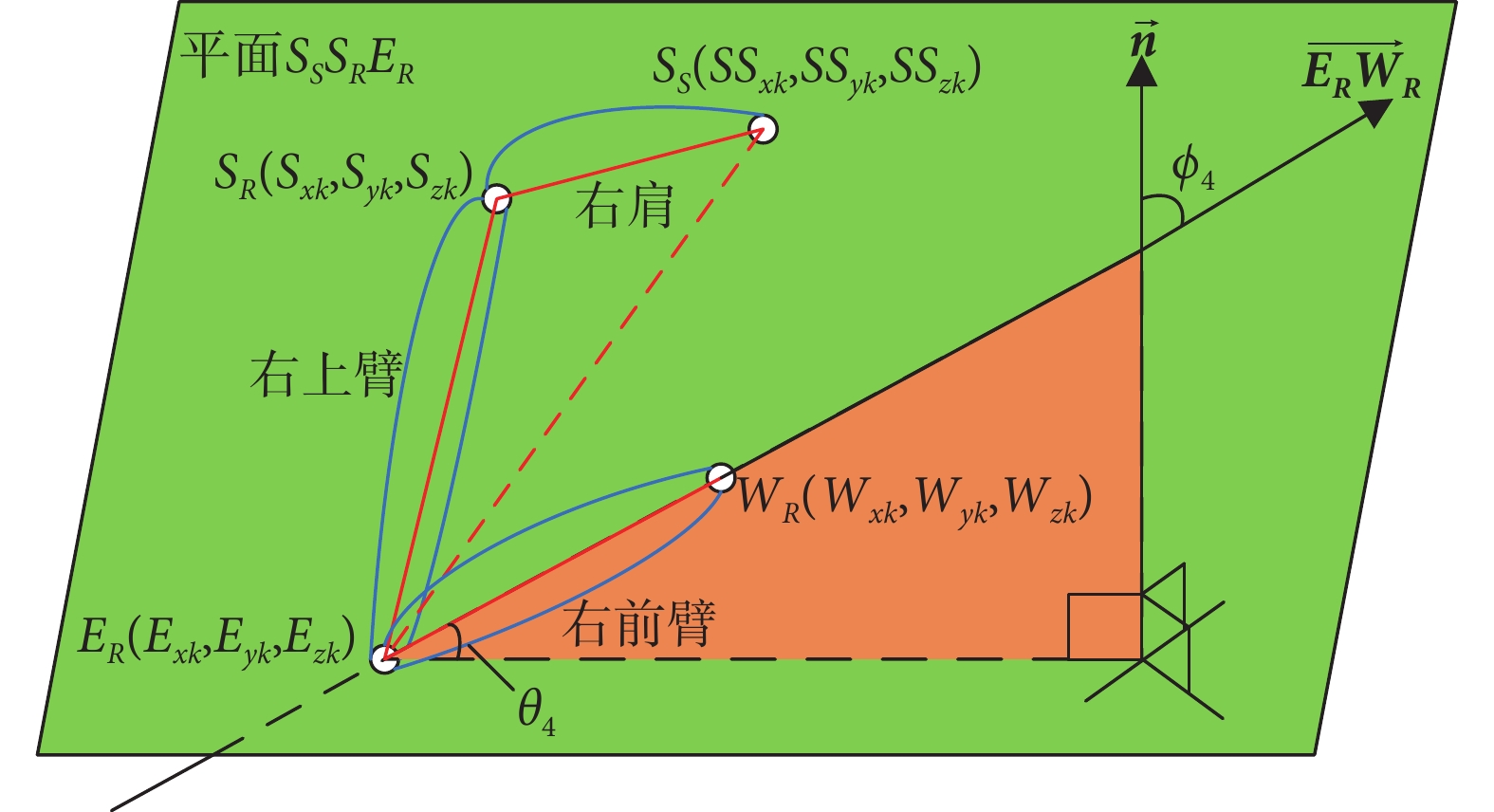

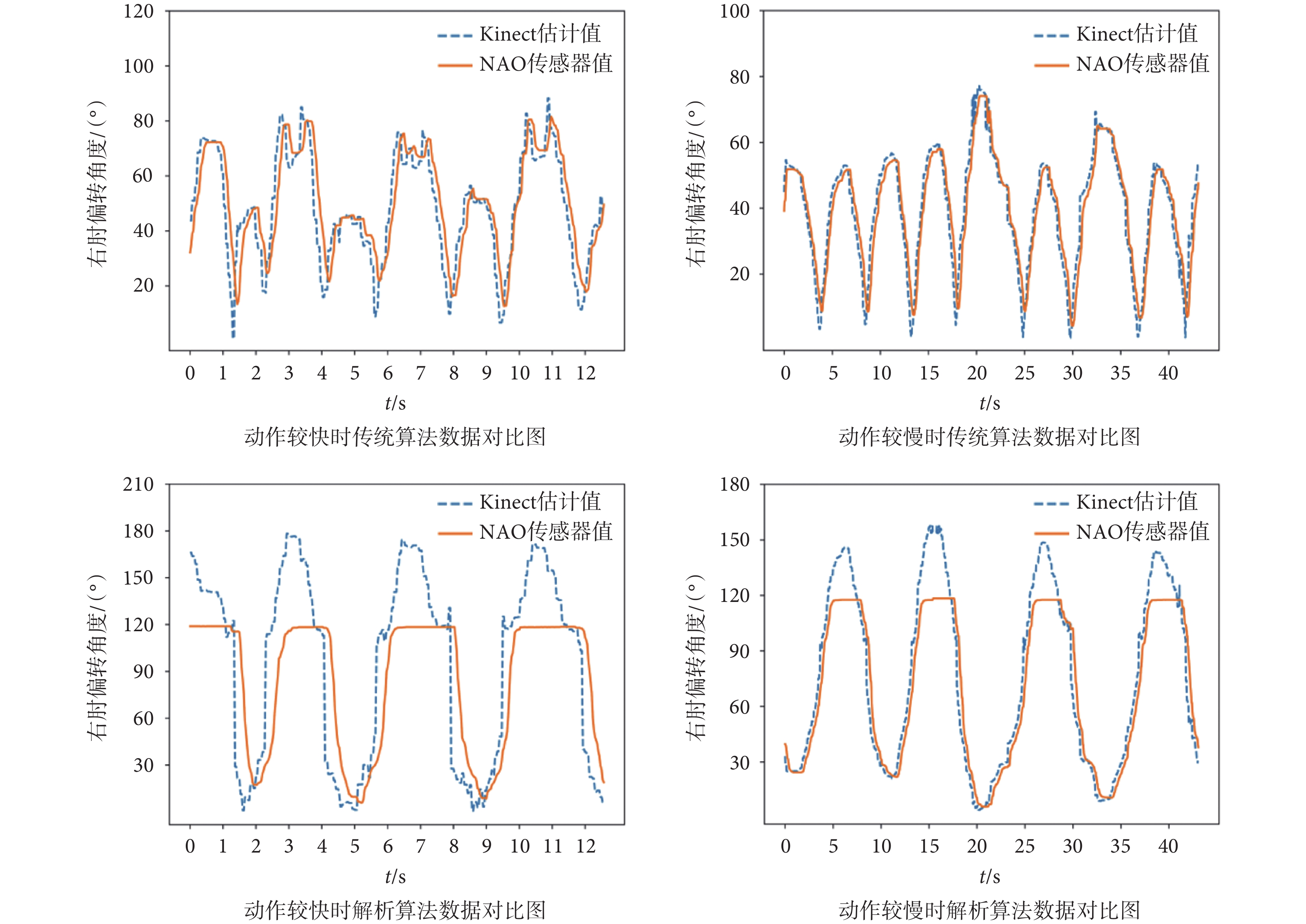

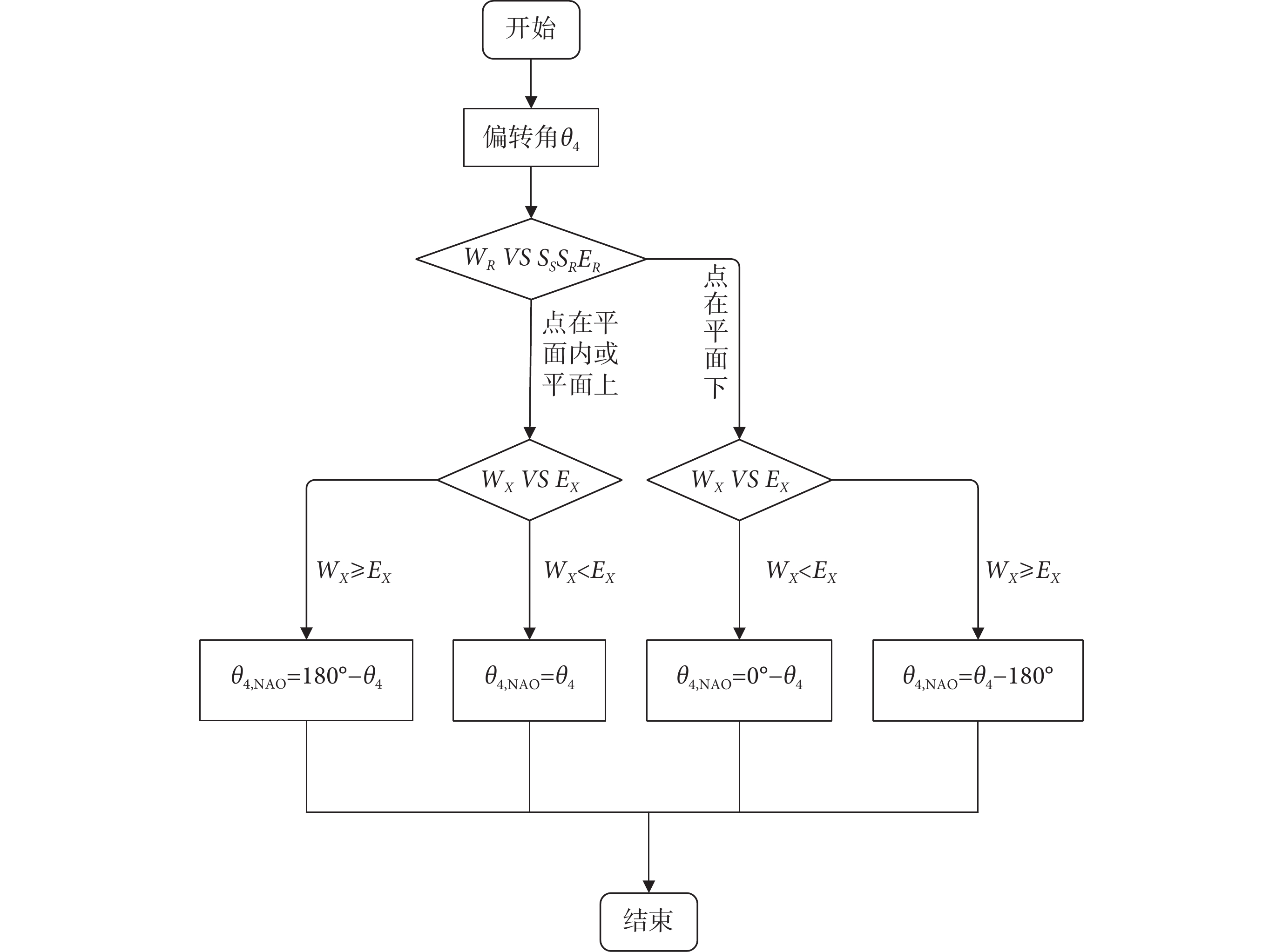

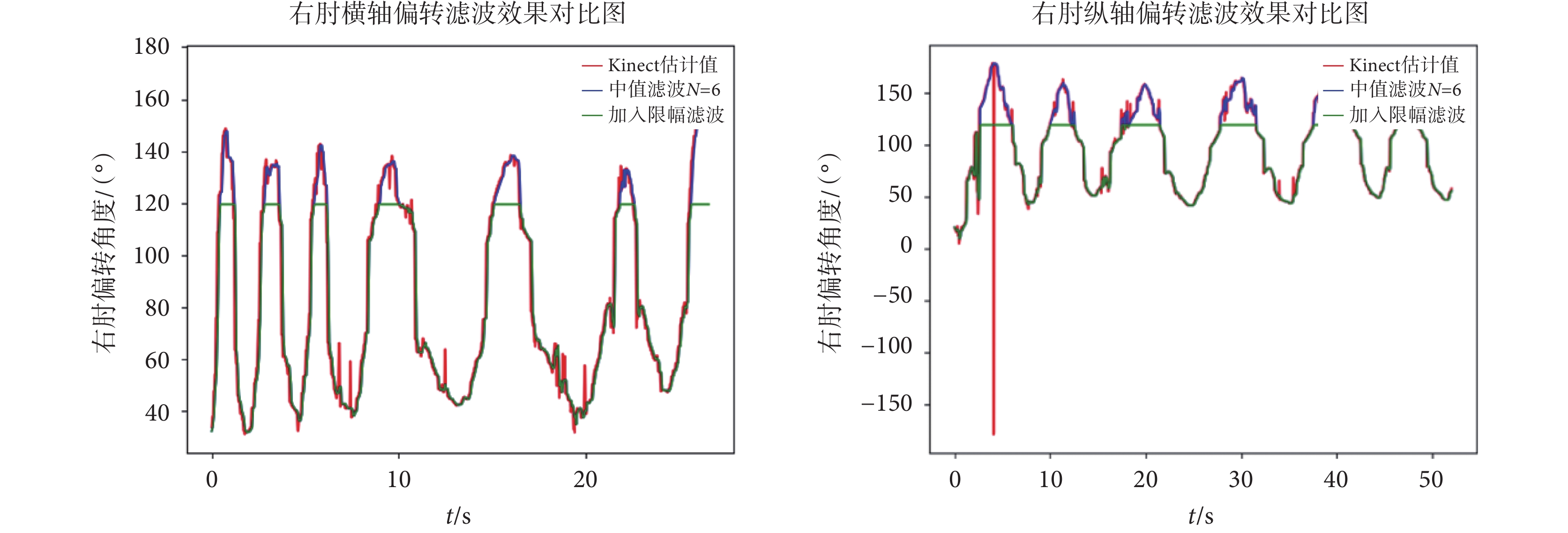

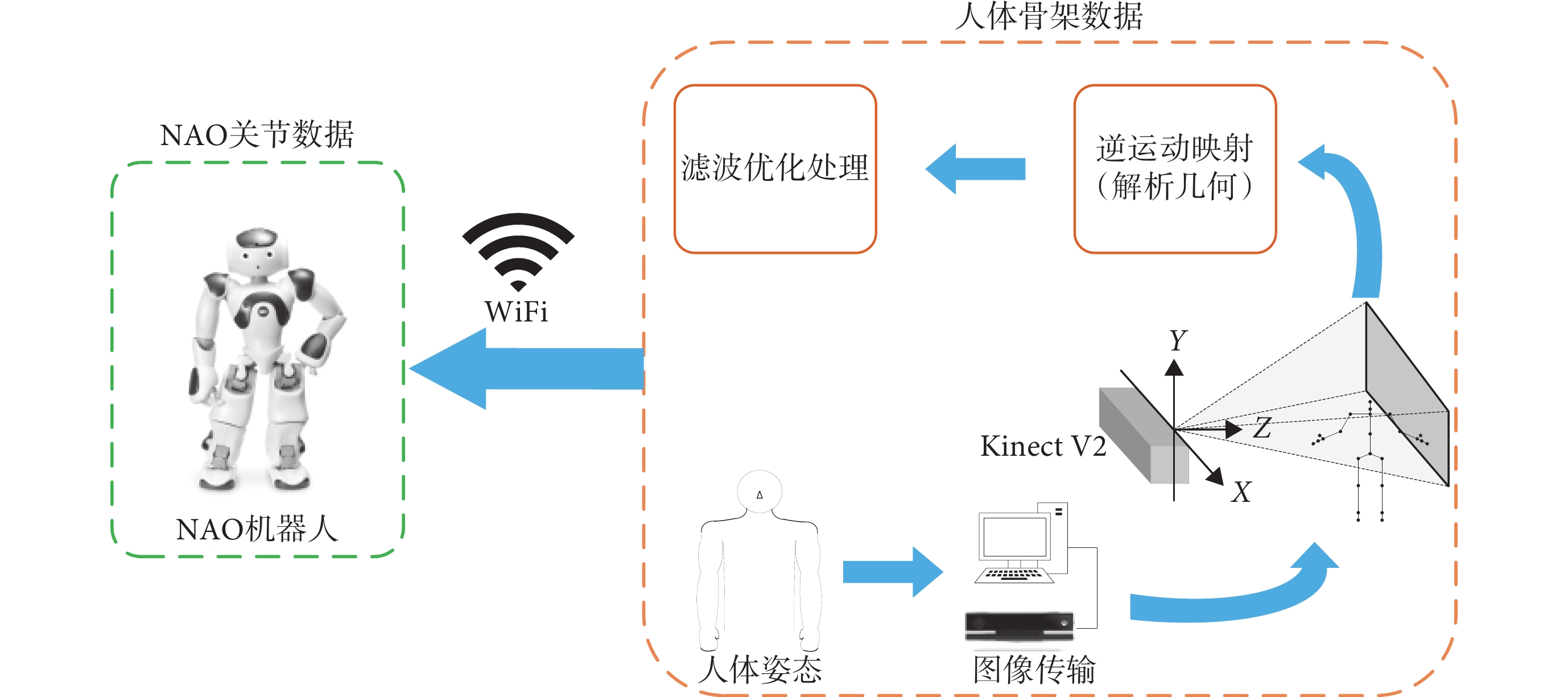

Gesture imitation is a common rehabilitation strategy in limb rehabilitation training. In traditional rehabilitation training, patients need to complete training actions under the guidance of rehabilitation physicians. However, due to the limited resources of the hospital, it cannot meet the training and guidance needs of all patients. In this paper, we proposed a following control method based on Kinect and NAO robot for the gesture imitation task in rehabilitation training. The method realized the joint angles mapping from Kinect coordination to NAO robot coordination through inverse kinematics algorithm. Aiming at the deflection angle estimation problem of the elbow joint, a virtual space plane was constructed and realized the accurate estimation of deflection angle. Finally, a comparative experiment for deflection angle of the elbow joint angle was conducted. The experimental results showed that the root mean square error of the angle estimation value of this method in right elbow transverse deflection and vertical deflection directions was 2.734° and 2.159°, respectively. It demonstrates that the method can follow the human movement in real time and stably using the NAO robot to show the rehabilitation training program for patients.

Citation： LIU Xiaoguang, LI Simin, LIANG Tie, LI Jun, LOU Cunguang, WANG Hongrui, LIU Xiuling. Follow control of upper limb rehabilitation training based on Kinect and NAO robot. Journal of Biomedical Engineering, 2022, 39(6): 1189-1198. doi: 10.7507/1001-5515.202111009 Copy
