Value of Multi-slice Spiral Computed Tomography Angiography in the Diagnosis of True Splenic Artery Aneurysm_West China Medical Journal

Authors：

 XiaYujin ,  ZhaoZhenguo , GuQiang , WenFeng , WangShengjia

Department of Radiology, Pudong New Area People's Hospital, Shanghai 201299, P. R. China;

Corresponding?author：

ZhaoZhenguo, Email: zhaozhenguo1@sina.com

Keywords：

Splenic artery; Aneurysm; Angiography; Diagnosis

DOI：

10.7507/1002-0179.201600381

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

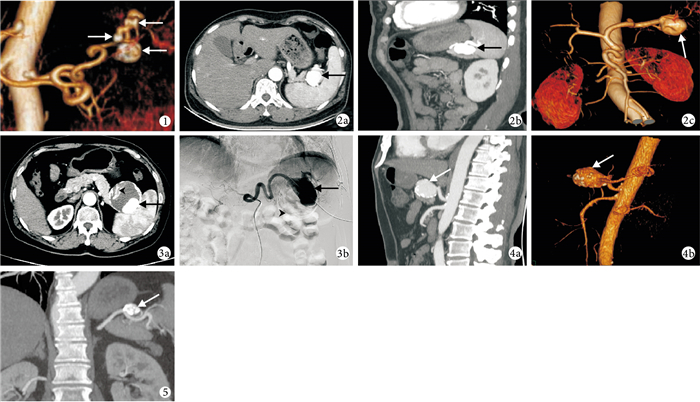

Objective To investigate the value and clinical significance of multi-slice spiral computed tomography angiography (MSCTA) in diagnosing true splenic artery aneurysm. Methods Seven patients with splenic artery aneurysm diagnosed by MSCTA between October 2010 and July 2014 were included in this study. Image post-processing technologies such as multi-planar reformation, curved planar reformation, maximum intensity projection and volume rendering technology were introduced. Results All the artery aneurysms were found through image post-processing technologies. There were 9 tumors in the 7 patients with splenic artery aneurysm, among which 1 was at the upper segment of pancreas, 2 at the segment of pancreas, 3 at the anterior segment of pancreas, and 1 (multiple) at the anterior segment of pancreas and anterior of hilus of spleen. The maximum volume of tumor was 60 mm×57 mm×54 mm. One tumor wall had calcification and other 6 cases only displayed tumor wall had varying degrees of "egg-shell" calcification, and mural thrombosis was detected in 3 cases. Conclusions MSCTA is a reliable method to display splenic artery aneurysm. The combination of multiple image post-processing technologies is more helpful in observing the features of tumor body and the internal and external conditions of tumor cavity, which has guiding significance for further clinical treatment.

Citation： XiaYujin, ZhaoZhenguo, GuQiang, WenFeng, WangShengjia. Value of Multi-slice Spiral Computed Tomography Angiography in the Diagnosis of True Splenic Artery Aneurysm. West China Medical Journal, 2016, 31(8): 1402-1405. doi: 10.7507/1002-0179.201600381 Copy

1.	Chiesa R, Astore D, Guzzo G, et al. Visceral artery aneuryams[J]. Ann Vascul Surg, 2005, 19(1):42-48.
2.	Agrawal GA, Johnson PT, Fishman EK. Splenic artery aneurysms and pseudoaneurysms:clinical distinctions and CT appearances[J]. AJR Am J Roentgenol, 2007, 188(4):992-999.
3.	姜洪池, 陳孝平.實用肝脾外科學[M].北京:科學出版社, 2003:530-531.
4.	梅曉燕, 龔波, 陸成棟, 等.多層螺旋CT血管成像在脾動脈瘤診斷中的應用[J].醫學影像學雜志, 2013, 23(12):1967-1969.
5.	李惠民, 董偉華, 肖湘生, 等.多層CT血管造影診斷脾動脈瘤的價值[J].第二軍醫大學學報, 2003, 24(5):484-487.
6.	張龍江, 沈文, 祁吉, 等.內臟動脈瘤的多層螺旋CT血管成像[J].放射學實踐, 2009, 24(8):816-819.
7.	段旭華, 周國鋒, 馮敢生, 等.多層螺旋CT對腹部假性動脈瘤的診斷價值[J].實用放射學雜志, 2013, 29(7):1129-1132, 1143.
8.	黃新天.內臟動脈瘤常見病因及診治[J].中國實用外科雜志, 2009, 29(11):894-896.
9.	程波, 童強, 盧曉明, 等.腹部臟器假性動脈瘤診治體會[J].腹部外科, 2004, 17(5):292-293.
10.	周康榮, 嚴福華, 曾蒙蘇.腹部CT診斷學[M].上海:復旦大學出版社, 2011:582-583.
11.	李曉兵, 田建明, 王培軍, 等.多層螺旋CT三維重建在脾動脈瘤診斷中的價值[J].中國醫學影像技術, 2002, 18(2):177-179.
12.	吳東, 周康榮, 陳祖望.螺旋CT血管造影在內臟動脈瘤診斷中的臨床應用和價值[J].中華放射學雜志, 2000, 34(2):131-134.
13.	劉軍, 沈樹斌, 譚長連, 等.腦動脈瘤螺旋CT血管造影的評價[J].放射學實踐, 2003, 18(4):252-254.
14.	胡海菁, 張應和, 徐新超, 等.血管成像技術診斷內臟動脈瘤的臨床價值[J].放射學實踐, 2008, 23(9):1009-1013.
15.	劉崎, 陸建平, 王飛, 等.三維增強MR血管造影診斷內臟動脈瘤的臨床價值[J].中華普通外科學雜志, 2009, 24(1):16-19.
16.	王治民, 徐香玖.多層螺旋CT血管成像在體部動脈病變中的應用[J].實用放射學雜志, 2011, 27(2):263-265.

1. Chiesa R, Astore D, Guzzo G, et al. Visceral artery aneuryams[J]. Ann Vascul Surg, 2005, 19(1):42-48.
2. Agrawal GA, Johnson PT, Fishman EK. Splenic artery aneurysms and pseudoaneurysms:clinical distinctions and CT appearances[J]. AJR Am J Roentgenol, 2007, 188(4):992-999.
3. 姜洪池, 陳孝平.實用肝脾外科學[M].北京:科學出版社, 2003:530-531.
4. 梅曉燕, 龔波, 陸成棟, 等.多層螺旋CT血管成像在脾動脈瘤診斷中的應用[J].醫學影像學雜志, 2013, 23(12):1967-1969.
5. 李惠民, 董偉華, 肖湘生, 等.多層CT血管造影診斷脾動脈瘤的價值[J].第二軍醫大學學報, 2003, 24(5):484-487.
6. 張龍江, 沈文, 祁吉, 等.內臟動脈瘤的多層螺旋CT血管成像[J].放射學實踐, 2009, 24(8):816-819.
7. 段旭華, 周國鋒, 馮敢生, 等.多層螺旋CT對腹部假性動脈瘤的診斷價值[J].實用放射學雜志, 2013, 29(7):1129-1132, 1143.
8. 黃新天.內臟動脈瘤常見病因及診治[J].中國實用外科雜志, 2009, 29(11):894-896.
9. 程波, 童強, 盧曉明, 等.腹部臟器假性動脈瘤診治體會[J].腹部外科, 2004, 17(5):292-293.
10. 周康榮, 嚴福華, 曾蒙蘇.腹部CT診斷學[M].上海:復旦大學出版社, 2011:582-583.
11. 李曉兵, 田建明, 王培軍, 等.多層螺旋CT三維重建在脾動脈瘤診斷中的價值[J].中國醫學影像技術, 2002, 18(2):177-179.
12. 吳東, 周康榮, 陳祖望.螺旋CT血管造影在內臟動脈瘤診斷中的臨床應用和價值[J].中華放射學雜志, 2000, 34(2):131-134.
13. 劉軍, 沈樹斌, 譚長連, 等.腦動脈瘤螺旋CT血管造影的評價[J].放射學實踐, 2003, 18(4):252-254.
14. 胡海菁, 張應和, 徐新超, 等.血管成像技術診斷內臟動脈瘤的臨床價值[J].放射學實踐, 2008, 23(9):1009-1013.
15. 劉崎, 陸建平, 王飛, 等.三維增強MR血管造影診斷內臟動脈瘤的臨床價值[J].中華普通外科學雜志, 2009, 24(1):16-19.
16. 王治民, 徐香玖.多層螺旋CT血管成像在體部動脈病變中的應用[J].實用放射學雜志, 2011, 27(2):263-265.
