Clinical application of individualized S<sub>1</sub> pedicle screw placement_West China Medical Journal

Authors：

WAN Shengyu ,  LIN Xu , ZHANG Jian , ZENG Yulin , WU Fan , WU Chao , ZHONG Zeli , ZENG Jun , DENG Jiayan , TAN Lun

Section I, Department of Orthopaedics, the Fourth People’s Hospital of Zigong, Zigong, Sichuan 643000, P. R. China;

Corresponding?author：

LIN Xu, Email: med_linxu@163.com

Keywords：

Sacral; Individual; Pedicle screw; Biomechanical

DOI：

10.7507/1002-0179.201907228

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

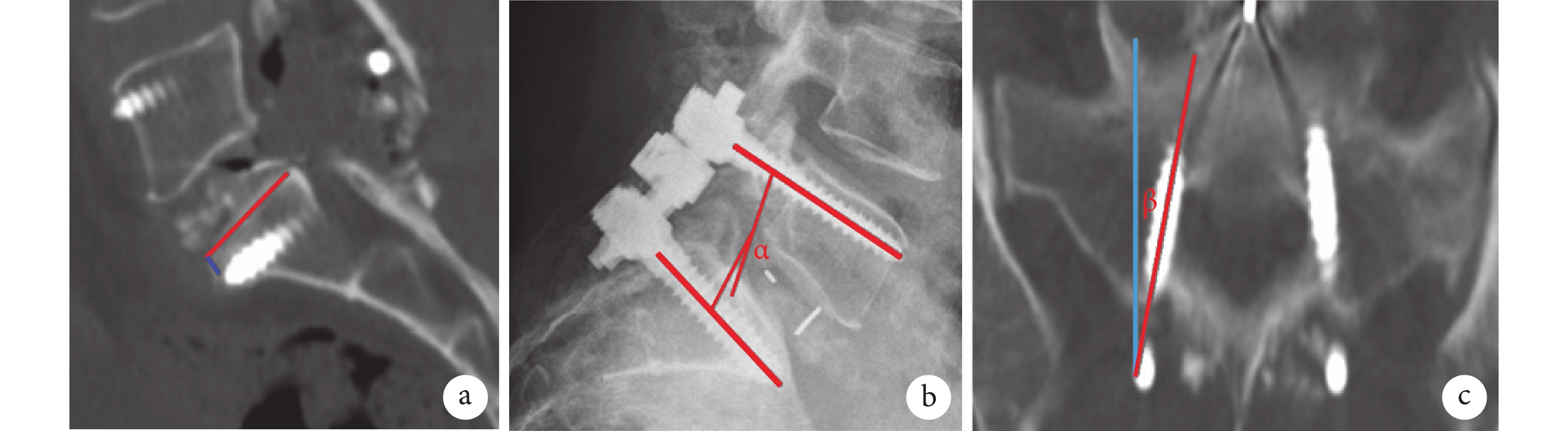

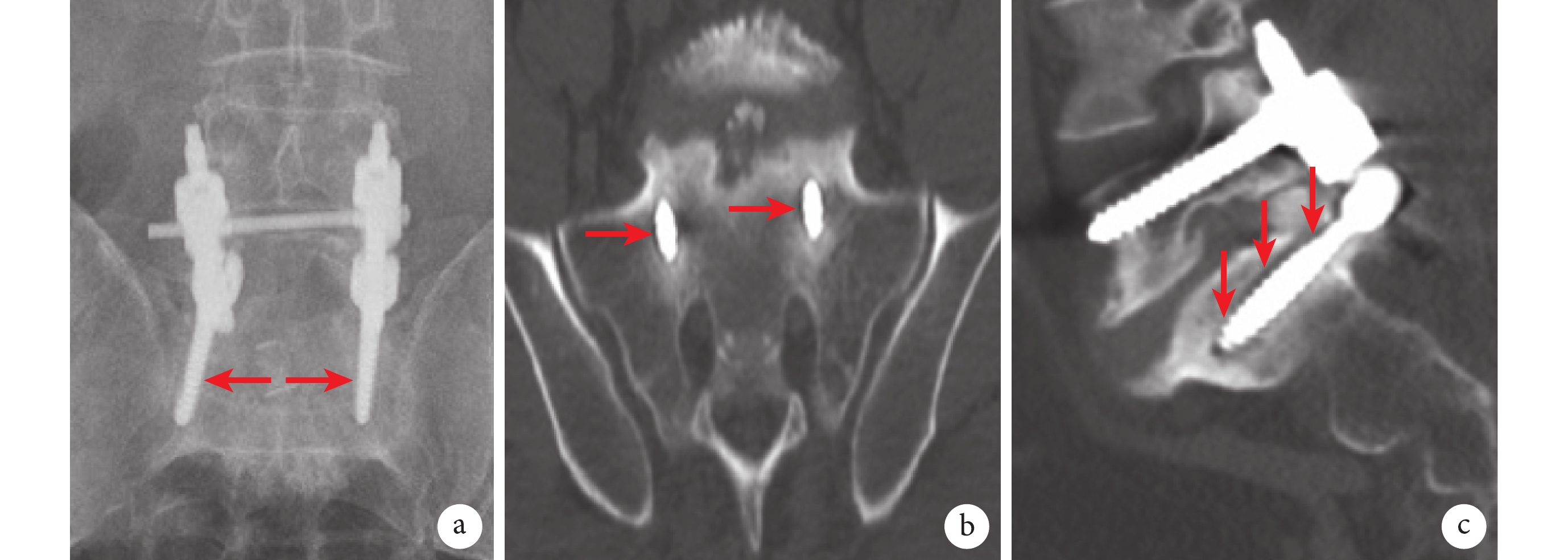

Objective To explore the feasibility of the clinical application of individualized simulated S₁ pedicle screw.Methods The data of patients with lumbar disease diagnosed and treated in the Fourth People’s Hospital of Zigong from May 2017 to April 2019 were retrospectively analyzed. According to the preoperative individualized design of the S₁ pedicle screw placement path, the patients were divided into individualized screw placement group and traditional screw placement group. The distance D between the screw tip and the endplate of the S₁, the angle α of the screw in the plane of the dysplasia and the lumbar pedicle of the L₅, the angle of oblique angle β, the number of screws of 35 and 40 mm in length, and the screw loosening rate (followed-up within 1 year) in the two groups were analyzed.Results A total of 59 patients were enrolled in this study, 31 in the individualized screw placement group and 28 in the traditional screw placement group. The differences in the distance D between the screw tip and the endplate of the S₁ [(2.61±0.82) vs.(4.13±1.51) mm; t=-5.718, P<0.001], the angle α of the screw in the plane of the dysplasia and the lumbar pedicle of the L₅ [(9.31±3.52) vs. (13.53±4.78)°; t=-5.646, P<0.001], the angle of oblique angle β [(15.73±6.04) vs. (10.65±5.09)°; t=3.022, P=0.004], the proportion of using screw models [40 mm in length: 56 vs. 8; 35 mm in length: 6 vs. 48; χ²=68.539, P<0.001], and the screw loosening rate followed-up within 1 year [3.22% vs. 16.07%; χ²=5.774, P<0.001] were statistically significant between the individualized screw placement group and the traditional screw placement group.Conclusions Preoperative individualized design of the pedicle screw of the S₁ pedicle screw can be used in clinical practice. The biomechanical stability of the S₁ pedicle screw can be improved and the sagittal balance can be achieved.
