Bi-modality Image Classification Based on Independent Component Analysis_Journal of Biomedical Engineering

Authors：

GUANJie ,  YANGWenlu

College of Information Engineering, Shanghai Maritime University, Shanghai 200135, China;

Corresponding?author：

YANGWenlu, Email: wlyang@shmtu.edu.cn

Keywords：

Alzheimer's disease; mild cognitive impairment; independent component analysis; support vector machine; bi-modality images

DOI：

10.7507/1001-5515.20140193

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

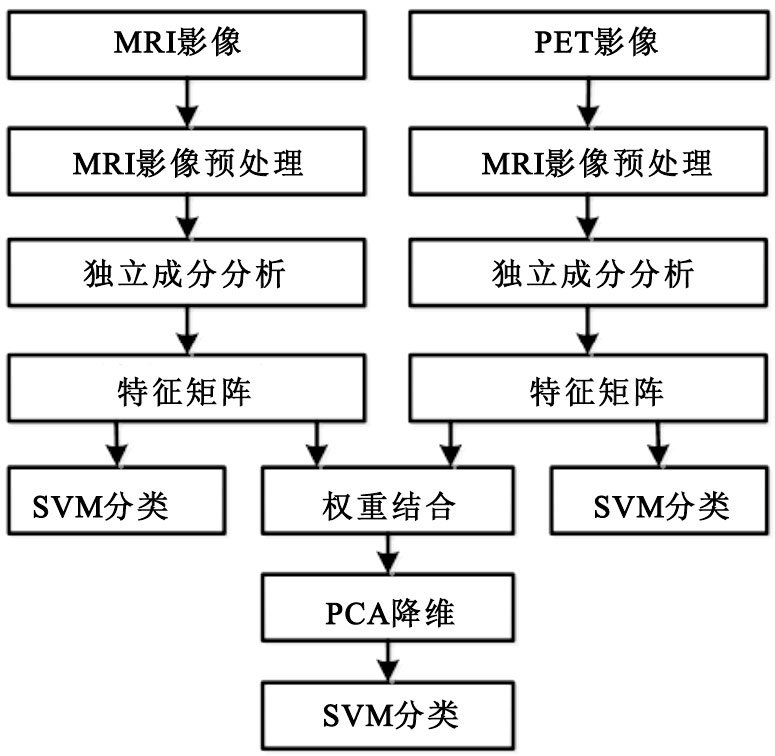

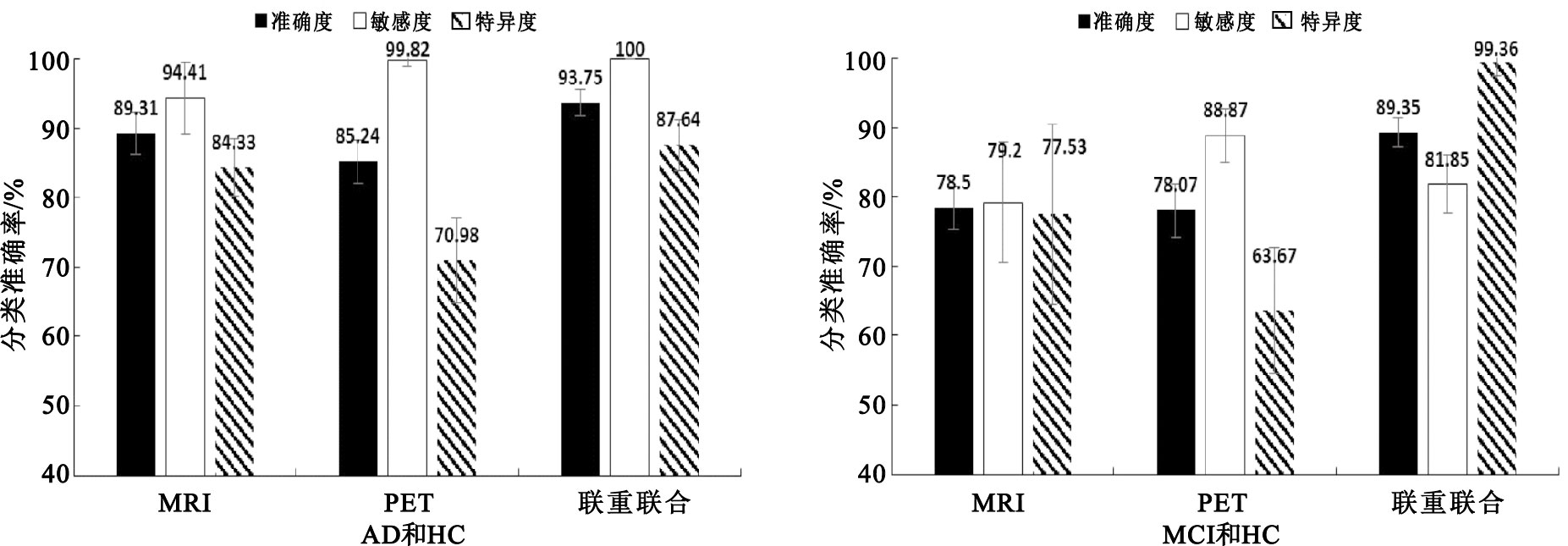

We in the present research proposed a classification method that applied infomax independent component analysis (ICA) to respectively extract single modality features of structural magnetic resonance imaging (sMRI) and positron emission tomography (PET). And then we combined these two features by using a method of weight combination. We found that the present method was able to improve the accurate diagnosis of Alzheimer's disease (AD) and mild cognitive impairment (MCI). Compared AD to healthy controls (HC): the study achieved a classification accuracy of 93.75%, with a sensitivity of 100% and a specificity of 87.64%. Compared MCI to HC: classification accuracy was 89.35%, with a sensitivity of 81.85% and a specificity of 99.36%. The experimental results showed that the bi-modality method performed better than the individual modality in comparison to classification accuracy.

Citation： GUANJie, YANGWenlu. Bi-modality Image Classification Based on Independent Component Analysis. Journal of Biomedical Engineering, 2014, 31(5): 1031-1036. doi: 10.7507/1001-5515.20140193 Copy

1.	王永炎,田金洲.阿爾茨海默病的診斷與治療[M].北京:人民衛生出版社,2009:3-20.
2.	EWERS M, WALSH C, TROJANOWSKI J Q, et al. Prediction of conversion from mild cognitive impairment to Alzheimer's disease dementia based upon biomarkers and neuropsychological test performance[J]. Neurobiol Aging, 2012, 33(7): 1203-1214.
3.	薛小燕,郭小華,李敏,等.阿爾茨海默病發病機理的研究進展[J].神經藥理學報,2011,1(6):37-47.
4.	WEINER M W, VEITCH D P, AISEN P S, et al. The Alzheimer's disease neuroimaging initiative: a review of papers published since its inception[J]. Alzheimers Dement, 2012, 8(1 Suppl): S1-S68.
5.	雷露雯,王勇.阿爾茨海默病發病機制與炎癥研究進展[J].醫學綜述,2008,14(20):3041-3043.
6.	趙小杰,龍志穎,郭小娟,等.阿爾茨海默氏癥研究中的磁共振成像數據分析[J].軟件學報,2009,20(5):1123-1138.
7.	魏憲玲,唐桂波.磁共振對阿爾茨海默病的研究[J].醫學信息:下旬刊,2013,26(4):698-699.
8.	ILLáN I A, GóRRIZ J M, RAMíREZ J, et al. 18F-FDG pet imaging analysis for computer aided Alzheimer's diagnosis[J]. Information Sciences, 2011, 181(4): 903-916.
9.	石慶麗,韓利坤,袁春,等.阿爾茨海默病的影像學研究進展[J].中國康復理論與實踐,2013,19(4):354-359.
10.	FRISTON K, ASHBURNER J, KIEBEL S, et al. Statistical parametric mapping: The analysis of functional brain images[M]. London: Academic Press, 2006:1-30.
11.	CHEN H B, LI B L, CHEN Z C. Automatic extracting event-related potentials within several trials using Infomax ICA algorithm[J]. J Sci Ind Res, 2012, 71(7): 468-473.
12.	LANGLOIS D, CHARTIER S, GOSSELIN D. An introduction to Independent Component Analysis: InfoMax and FastICA algorithms[J]. Tutor Quant Methods Psychol, 2012, 6(1): 31-38.
13.	ARBIZU J, PRIETO E, MARTíNEZ-LAGE P, et al; Alzheimer's Disease Neuroimaging Initiative. Automated analysis of FDG PET as a tool for single-subject probabilistic prediction and detection of Alzheimer's disease dementia[J]. Eur J Nucl Med Mol Imaging, 2013, 40(9):1394-1405.
14.	LANCASTER J L, TORDESILLAS-GUTIéRREZ D, MARTINEZ M, et al. Bias between MNI and Talairach coordinates analyzed using the ICBM-152 brain template[J]. Hum Brain Mapp, 2007, 28(11):1194-1205.
15.	楊彭舉,封洲燕,孫靜.獨立分量分析在神經元鋒電位分類中的一種新應用[J].中國生物醫學工程學報,2011,30(4):500-508.
16.	陳華富,堯德中,周可,等.一種基于獨立成分分析的功能磁共振數據處理方法[J].生物醫學工程學雜志,2002,19(1):64-66.
17.	XU L, GROTH K M, PEARLSON G, et al. Source-based morphometry: the use of independent component analysis to identify gray matter differences with application to schizophrenia[J]. Hum Brain Mapp, 2009, 30(3): 711-724.
18.	RAMKUMAR P, PARKKONEN L, HARI R, et al. Characterization of neuromagnetic brain rhythms over time scales of minutes using spatial independent component analysis[J]. Hum Brain Mapp, 2012, 33(7): 1648-1662.
19.	MIZIOLEK W, SAWICKI D. Face recognition: PCA or ICA[J]. Przeglad Elektrotechniczny, 2012, 88(07a): 286-288.
20.	SHAO Y E, LU C J, WANG Y C. A hybrid ICA-SVM approach for determining the quality variables at fault in a multivariate process[J]. Math Prob Eng, 2012, 2012: DOI: 10.1155/2012/284910.
21.	白鵬,張喜斌,張斌,等.支持向量機理論及工程應用實例[M].西安:西安電子科技大學出版社,2008:13-40.
22.	SENGUR A. Support vector machine ensembles for intelligent diagnosis of valvular heart disease[J]. J Med Syst, 2012, 36(4): 2649-2655.
23.	ZHANG Y L. Support vector machine classification algorithm and its application[M]. Information computing and applications: Third International Conference, ICICA 2012, Chengde, China, September 14-16, 2012. Berlin Heidelberg: Springer Berlin Heidelberg, 2012, 308: 179-186.
24.	ZHANG D Q, WANG Y P, ZHOU L P, et al. Multimodal classification of Alzheimer's disease and mild cognitive impairment[J]. NeuroImage, 2011, 55(3): 856-867.
25.	HINRICHS C, SINGH V, XU G, et al. MKL for robust multi-modality AD classification[J]. Med Image Comput Comput Assist Interv, 2009, 12(Pt 2): 786-794.

1. 王永炎,田金洲.阿爾茨海默病的診斷與治療[M].北京:人民衛生出版社,2009:3-20.
2. EWERS M, WALSH C, TROJANOWSKI J Q, et al. Prediction of conversion from mild cognitive impairment to Alzheimer's disease dementia based upon biomarkers and neuropsychological test performance[J]. Neurobiol Aging, 2012, 33(7): 1203-1214.
3. 薛小燕,郭小華,李敏,等.阿爾茨海默病發病機理的研究進展[J].神經藥理學報,2011,1(6):37-47.
4. WEINER M W, VEITCH D P, AISEN P S, et al. The Alzheimer's disease neuroimaging initiative: a review of papers published since its inception[J]. Alzheimers Dement, 2012, 8(1 Suppl): S1-S68.
5. 雷露雯,王勇.阿爾茨海默病發病機制與炎癥研究進展[J].醫學綜述,2008,14(20):3041-3043.
6. 趙小杰,龍志穎,郭小娟,等.阿爾茨海默氏癥研究中的磁共振成像數據分析[J].軟件學報,2009,20(5):1123-1138.
7. 魏憲玲,唐桂波.磁共振對阿爾茨海默病的研究[J].醫學信息:下旬刊,2013,26(4):698-699.
8. ILLáN I A, GóRRIZ J M, RAMíREZ J, et al. 18F-FDG pet imaging analysis for computer aided Alzheimer's diagnosis[J]. Information Sciences, 2011, 181(4): 903-916.
9. 石慶麗,韓利坤,袁春,等.阿爾茨海默病的影像學研究進展[J].中國康復理論與實踐,2013,19(4):354-359.
10. FRISTON K, ASHBURNER J, KIEBEL S, et al. Statistical parametric mapping: The analysis of functional brain images[M]. London: Academic Press, 2006:1-30.
11. CHEN H B, LI B L, CHEN Z C. Automatic extracting event-related potentials within several trials using Infomax ICA algorithm[J]. J Sci Ind Res, 2012, 71(7): 468-473.
12. LANGLOIS D, CHARTIER S, GOSSELIN D. An introduction to Independent Component Analysis: InfoMax and FastICA algorithms[J]. Tutor Quant Methods Psychol, 2012, 6(1): 31-38.
13. ARBIZU J, PRIETO E, MARTíNEZ-LAGE P, et al; Alzheimer's Disease Neuroimaging Initiative. Automated analysis of FDG PET as a tool for single-subject probabilistic prediction and detection of Alzheimer's disease dementia[J]. Eur J Nucl Med Mol Imaging, 2013, 40(9):1394-1405.
14. LANCASTER J L, TORDESILLAS-GUTIéRREZ D, MARTINEZ M, et al. Bias between MNI and Talairach coordinates analyzed using the ICBM-152 brain template[J]. Hum Brain Mapp, 2007, 28(11):1194-1205.
15. 楊彭舉,封洲燕,孫靜.獨立分量分析在神經元鋒電位分類中的一種新應用[J].中國生物醫學工程學報,2011,30(4):500-508.
16. 陳華富,堯德中,周可,等.一種基于獨立成分分析的功能磁共振數據處理方法[J].生物醫學工程學雜志,2002,19(1):64-66.
17. XU L, GROTH K M, PEARLSON G, et al. Source-based morphometry: the use of independent component analysis to identify gray matter differences with application to schizophrenia[J]. Hum Brain Mapp, 2009, 30(3): 711-724.
18. RAMKUMAR P, PARKKONEN L, HARI R, et al. Characterization of neuromagnetic brain rhythms over time scales of minutes using spatial independent component analysis[J]. Hum Brain Mapp, 2012, 33(7): 1648-1662.
19. MIZIOLEK W, SAWICKI D. Face recognition: PCA or ICA[J]. Przeglad Elektrotechniczny, 2012, 88(07a): 286-288.
20. SHAO Y E, LU C J, WANG Y C. A hybrid ICA-SVM approach for determining the quality variables at fault in a multivariate process[J]. Math Prob Eng, 2012, 2012: DOI: 10.1155/2012/284910.
21. 白鵬,張喜斌,張斌,等.支持向量機理論及工程應用實例[M].西安:西安電子科技大學出版社,2008:13-40.
22. SENGUR A. Support vector machine ensembles for intelligent diagnosis of valvular heart disease[J]. J Med Syst, 2012, 36(4): 2649-2655.
23. ZHANG Y L. Support vector machine classification algorithm and its application[M]. Information computing and applications: Third International Conference, ICICA 2012, Chengde, China, September 14-16, 2012. Berlin Heidelberg: Springer Berlin Heidelberg, 2012, 308: 179-186.
24. ZHANG D Q, WANG Y P, ZHOU L P, et al. Multimodal classification of Alzheimer's disease and mild cognitive impairment[J]. NeuroImage, 2011, 55(3): 856-867.
25. HINRICHS C, SINGH V, XU G, et al. MKL for robust multi-modality AD classification[J]. Med Image Comput Comput Assist Interv, 2009, 12(Pt 2): 786-794.
