A finite element analysis of petal-shaped poly-axial locking plate fixation in treatment of Y-shaped patellar fracture_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

MENG Depeng , OUYANG Yueping ,  HOU Chunlin

Department of Orthopedics, Changzheng Hospital, Second Military Medical University, Shanghai, 200003, P.R.China;

Corresponding?author：

HOU Chunlin, Email: chunlin_hou@163.com

Keywords：

Patellar fracture; poly-axial locking plate; finite element analysis; biomechanics

DOI：

10.7507/1002-1892.201706054

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

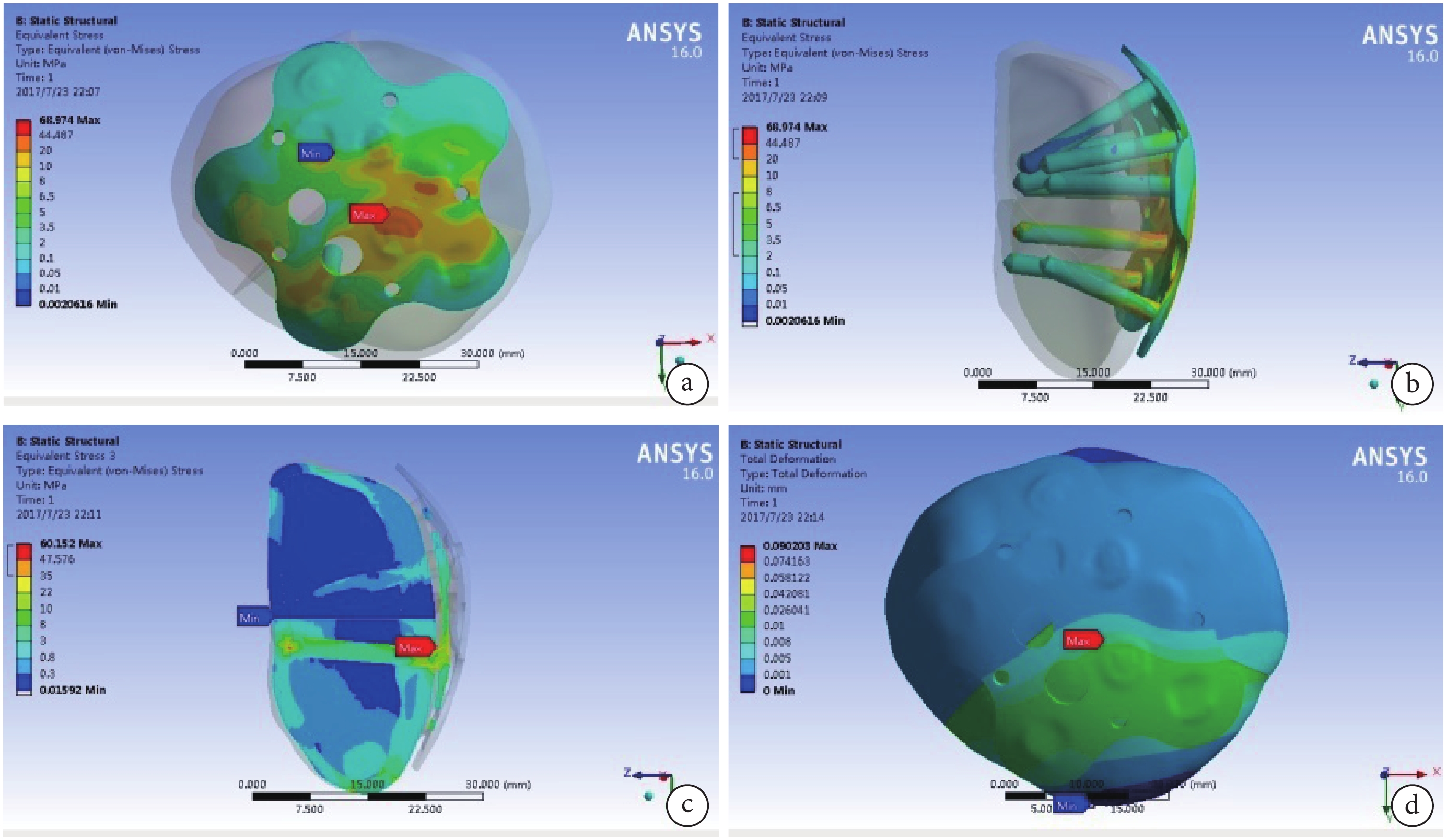

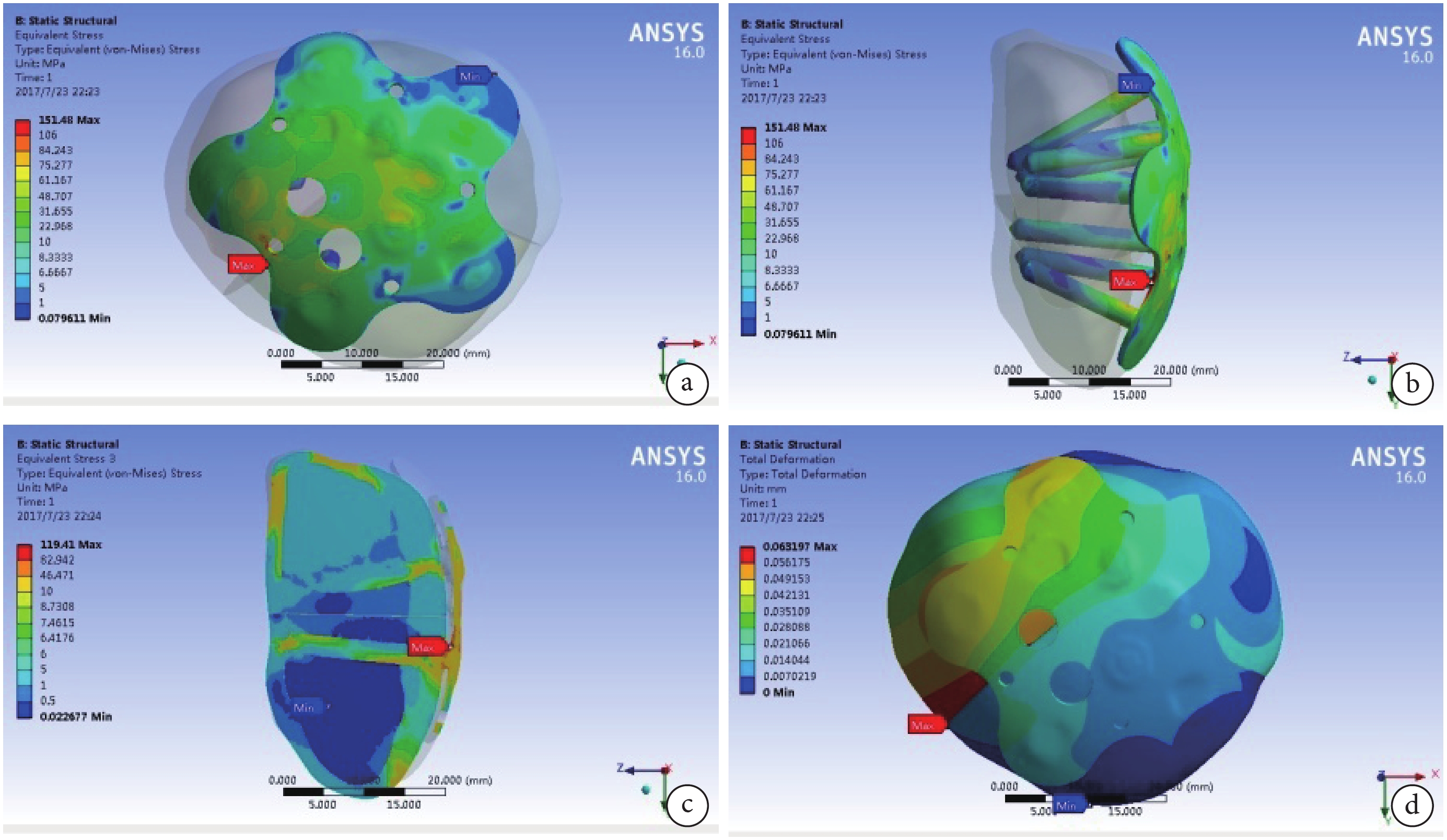

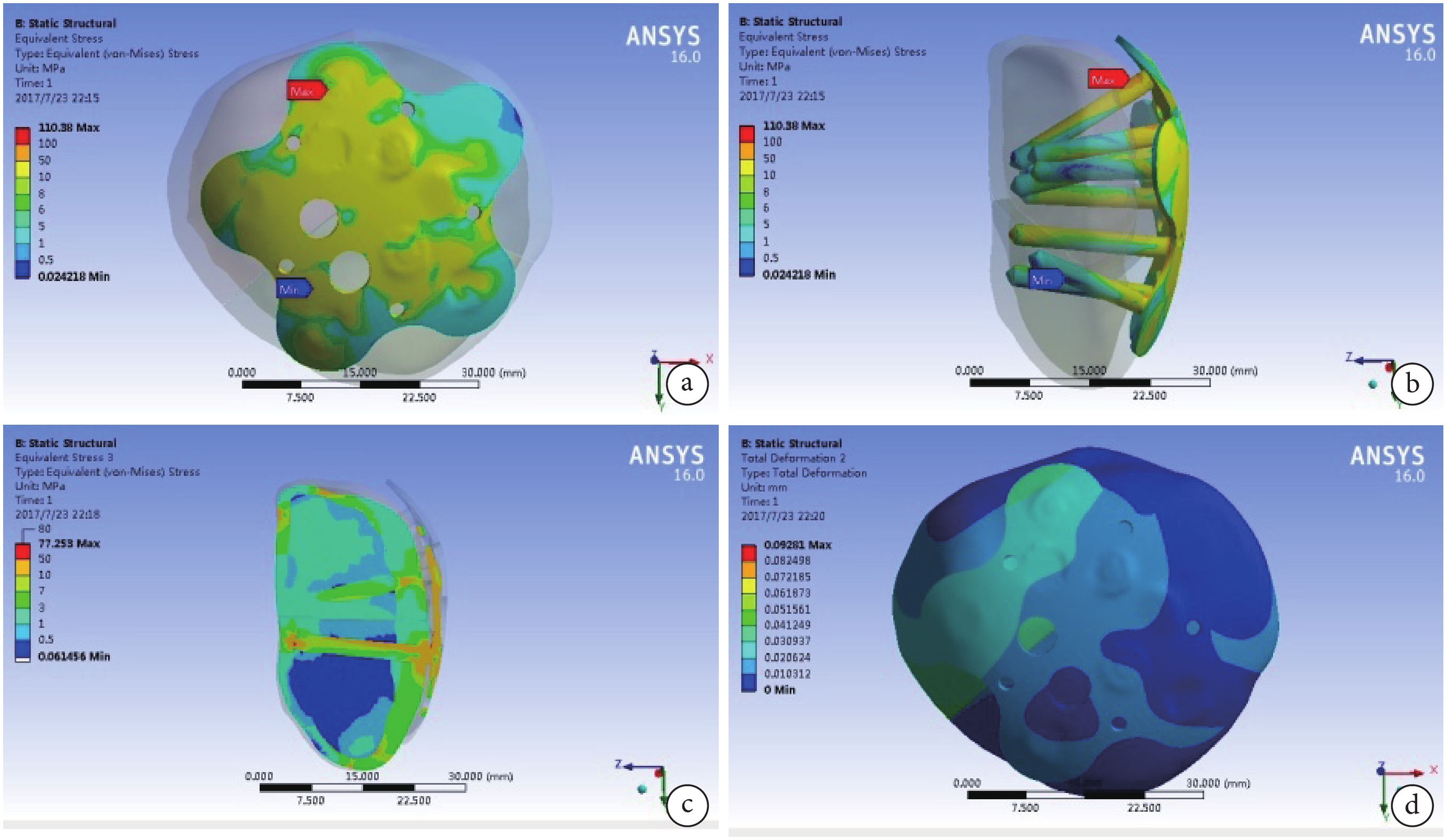

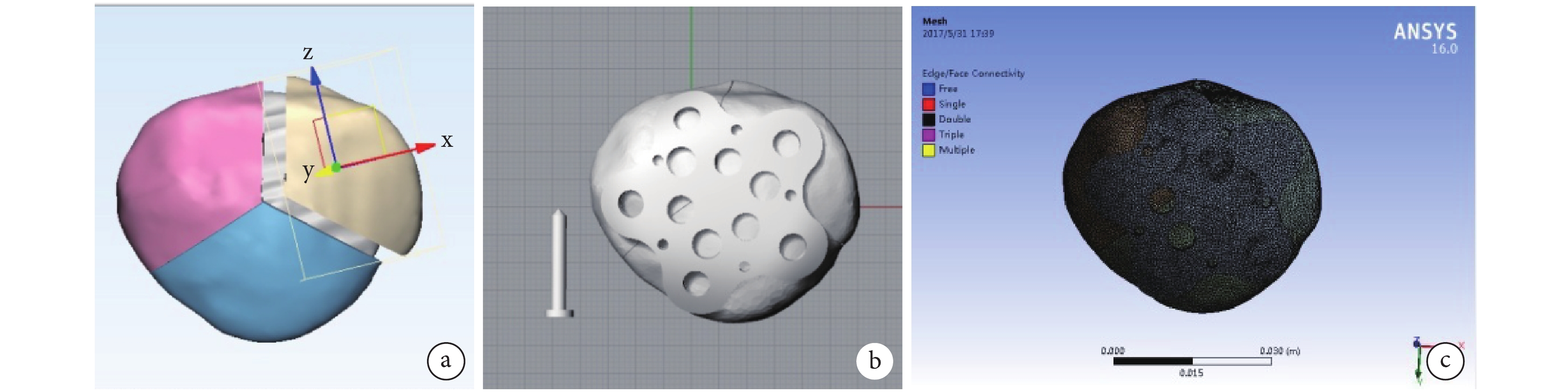

Objective To establish the finite element model of Y-shaped patellar fracture fixed with titanium-alloy petal-shaped poly-axial locking plate and to implement the finite element mechanical analysis. Methods The three-dimensional model was created by software Mimics 19.0, Rhino 5.0, and 3-Matic 11.0. The finite element analysis was implemented by ANSYS Workbench 16.0 to calculate the Von-Mises stress and displacement. Before calculated, the upper and lower poles of the patella were constrained. The 2.0, 3.5, and 4.4 MPa compressive stresses were applied to the 1/3 patellofemoral joint surface of the lower, middle, and upper part of the patella respectively, and to simulated the force upon patella when knee flexion of 20, 45, and 90°. Results The number of nodes and elements of the finite element model obtained was 456 839 and 245 449, respectively. The max value of Von-Mises stress of all the three conditions simulated was 151.48 MPa under condition simulating the knee flexion of 90°, which was lower than the yield strength value of the titanium-alloy and patella. The max total displacement value was 0.092 8 mm under condition simulating knee flexion of 45°, which was acceptable according to clinical criterion. The stress concentrated around the non-vertical fracture line and near the area where the screws were sparse. Conclusion The titanium-alloy petal-shaped poly-axial locking plate have enough biomechanical stiffness to fix the Y-shaped patellar fracture, but the result need to be proved in future.

Citation： MENG Depeng, OUYANG Yueping, HOU Chunlin. A finite element analysis of petal-shaped poly-axial locking plate fixation in treatment of Y-shaped patellar fracture. Chinese Journal of Reparative and Reconstructive Surgery, 2017, 31(12): 1456-1461. doi: 10.7507/1002-1892.201706054 Copy
