Application of self-designed adjustable operation frame in treatment of severe kyphosis secondary to ankylosing spondylitis with posterior osteotomy_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

ZHANG Wei ,  YU Haiyang , WANG Hongliang , ZHAI Yunlei , DONG Lei , ZHENG Guohui , XU Wenqiang , ZHANG Xu

Department of Orthopaedic Surgery, Fuyang People’s Hospital, Fuyang Clinical College of Anhui Medical University, Fuyang Anhui, 236000, P.R.China;

Corresponding?author：

YU Haiyang, Email: fy.yhy@163.com

Keywords：

Self-designed adjustable operation frame; ankylosing spondylitis; kyphosis; posterior osteotomy

DOI：

10.7507/1002-1892.202003115

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

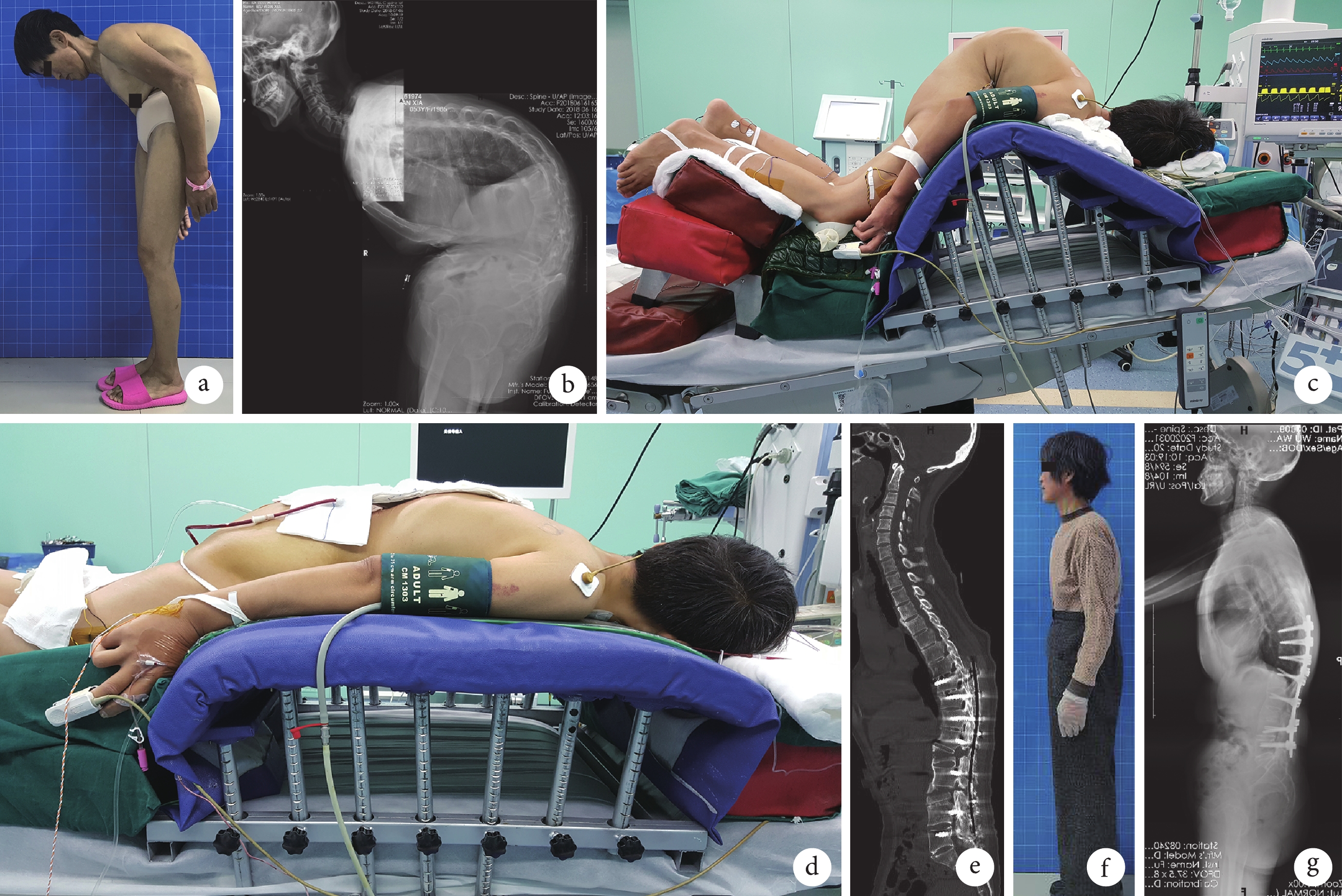

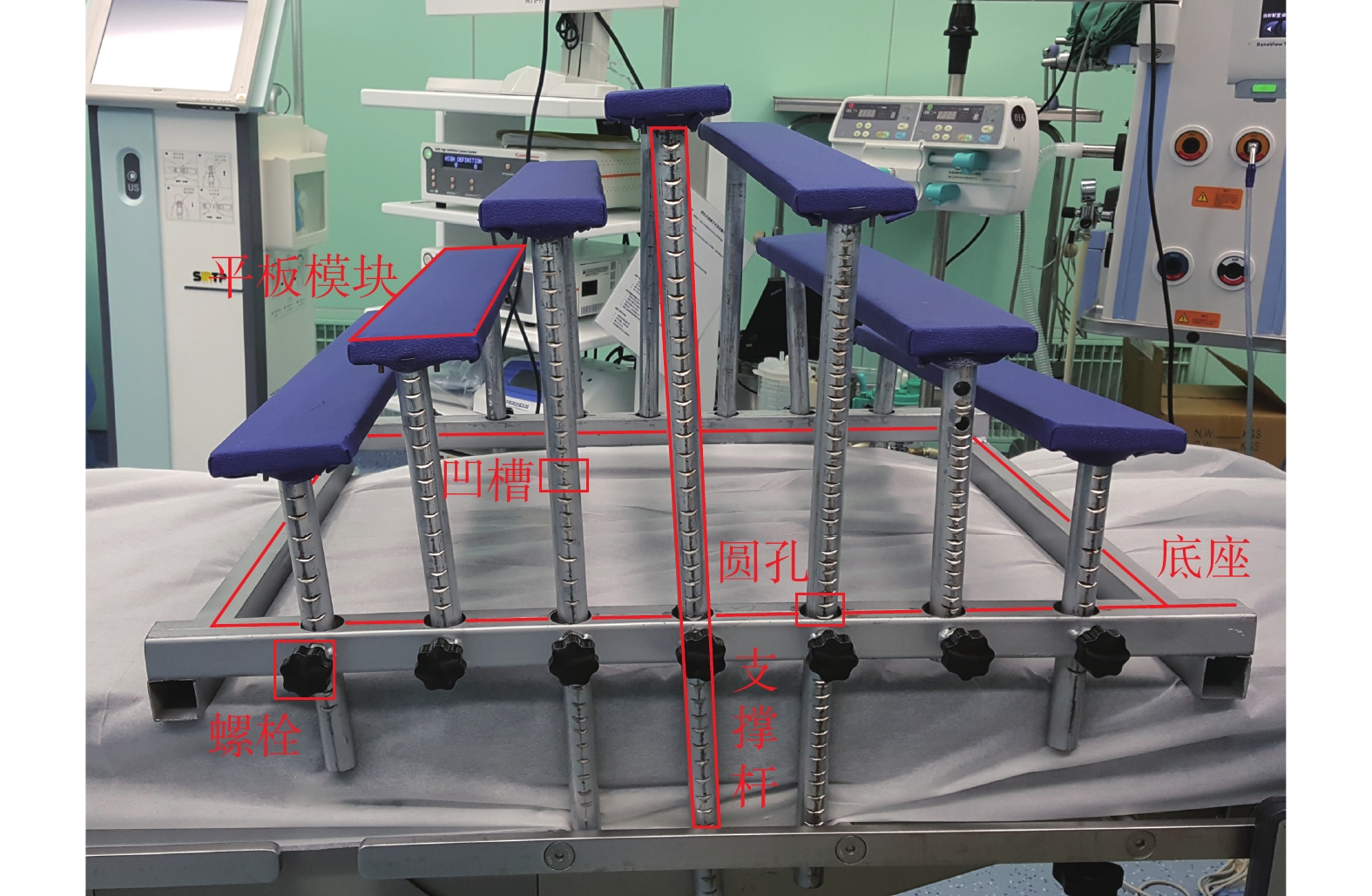

Objective To introduce a self-designed adjustable operation frame and explore the feasibility and safety in the treatment of severe kyphosis secondary to ankylosing spondylitis with posterior osteotomy.Methods Between March 2016 and May 2018, 7 cases of severe kyphosis secondary to ankylosing spondylitis were treated with posterior osteotomy using self-designed adjustable operation frame with prone position. There were 5 males and 2 females with an average age of 49.4 years (range, 40-55 years). The disease duration was 10-21 years (mean, 16.7 years). The apical vertebrae of kyphosis were located at T₁₁ in 2 cases, T₁₂ in 1 case, L₁ in 1 case, and L₂ in 3 cases. Among the 7 cases, 2 were classified as typeⅠ, 4 as type ⅡB, and 1 as type ⅢA according to 301 classification system. There was no neurological deficit of all cases; but 1 case suffered bilateral hip joints ankylosed in non-functional position. The parameters of chin-brow vertical angle (CBVA), global kyphosis (GK), thoracolumbar kyphosis (TLK), lumbar lordosis (LL), sagittal vertical axis (SVA) were measured; and the operation time, the intraoperative blood loss, and the complications were also collected and analyzed.Results All operations completed successfully. The operation time was 310-545 minutes (mean, 409.7 minutes) and the intraoperative blood loss was 1 500-2 500 mL (mean, 1 642.9 mL). There were 2 cases treated with one-level osteotomy of sagittal translation, 1 case of radiculopathy symptom of L₃, and 3 cases of tension of abdominal skin. All patients were followed up 20-35 months (mean, 27.9 months). There were significant differences in CBVA, GK, TLK, LL, and SVA between pre- and post-operation (P<0.05); but no significant difference between 1 week after operation and last follow-up (P>0.05). All the osteotomies and bone grafts fused well and no complications of loosening and breakage of internal fixator occurred during the follow-up.Conclusion In the posterior osteotomy for correction of severe kyphosis secondary to ankylosing spondylitis, the self-designed adjustable operation frame is convenient for the patient to be placed in prone position. It is safe, feasible, and effective to perform osteotomy correction with the aid of the self-designed adjustable operation frame.

Citation： ZHANG Wei, YU Haiyang, WANG Hongliang, ZHAI Yunlei, DONG Lei, ZHENG Guohui, XU Wenqiang, ZHANG Xu. Application of self-designed adjustable operation frame in treatment of severe kyphosis secondary to ankylosing spondylitis with posterior osteotomy. Chinese Journal of Reparative and Reconstructive Surgery, 2020, 34(10): 1269-1274. doi: 10.7507/1002-1892.202003115 Copy
