A preliminary study of the hemodynamics of concealed perforator flap in animal model with ultrasonic Doppler technique_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

ZHAN Yi ¹ , ZHOU Xiang ² , LIANG Jing ² , LI Xubo ² , LI Wenwen ³ , YANG Yutong ³ ,  PAN Fushun ⁴ ,  QI Jian ^2,5

1. Department of Orthopaedics, Affiliated Hospital of Guilin Medical University, Guilin Guangxi, 541001, P. R. China;
2. Department of Microsurgery and Orthopedic Trauma, the First Affiliated Hospital of Sun Yat-sen University, Guangzhou Guangdong, 510080, P. R. China;
3. Laboratory Animal Center, the First Affiliated Hospital of Sun Yat-sen University, Guangzhou Guangdong, 510080, P. R. China;
4. Department of Ultrasound, the First Affiliated Hospital of Sun Yat-sen University, Guangzhou Guangdong, 510080, P. R. China;
5. Guangdong Provincial Key Laboratory of Orthopaedics and Traumatology, Guangzhou Guangdong, 510080, P. R. China;

Corresponding?author：

PAN Fushun, Email: panfush@mail.sysu.edu.cn; QI Jian, Email: qijian@mail.sysu.edu.cn

Keywords：

Concealed perforator flap; saphenous artery; hemodynamics; ultrasonic Doppler technique; pig

DOI：

10.7507/1002-1892.202208081

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

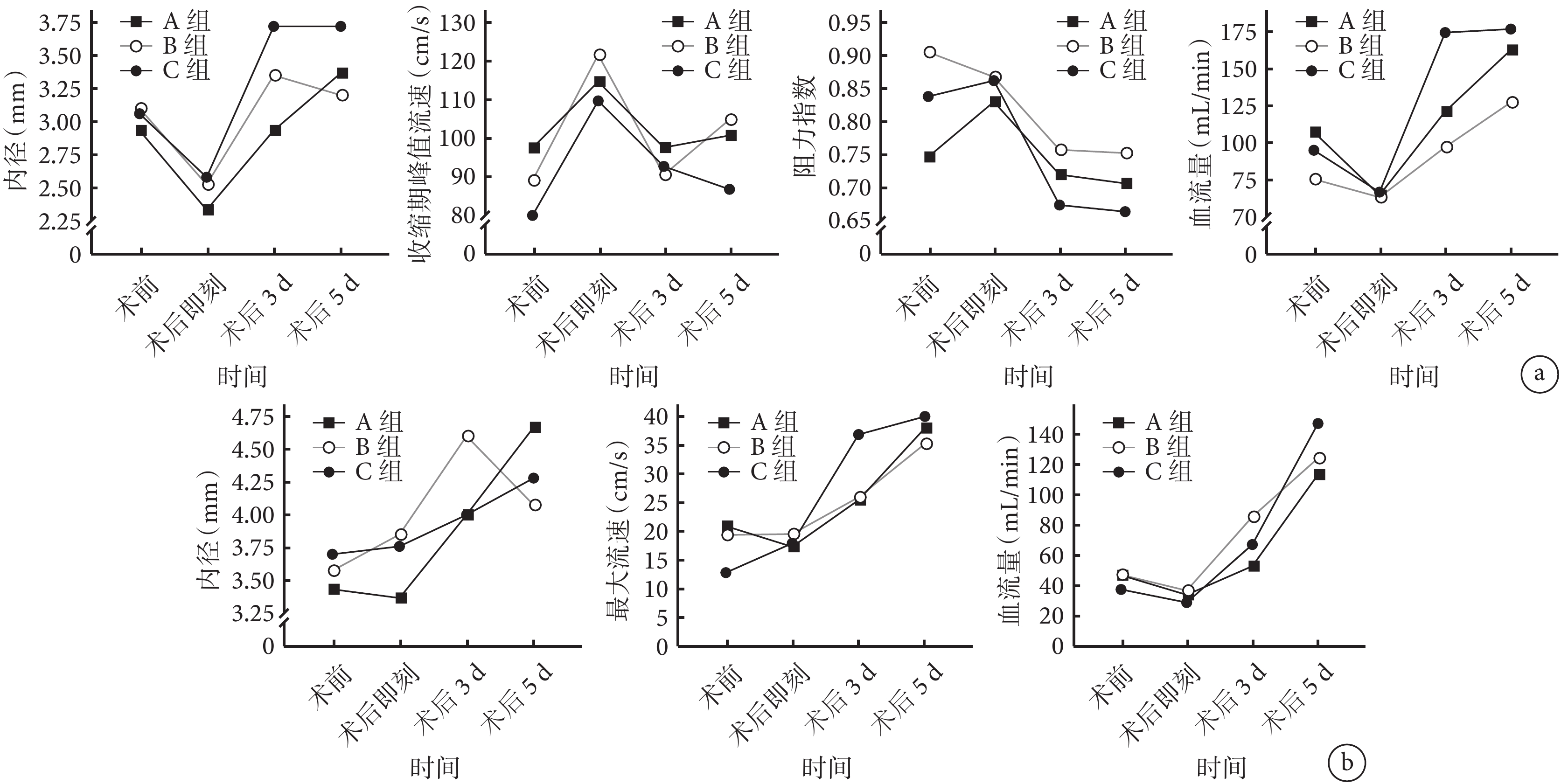

Objective To study the hemodynamic characteristics of concealed perforator flap in mini-pigs by ultrasonic Doppler technique. Methods Seven 7-month-old mini-pigs, weighing 20-25 kg, were included in the study. The saphenous artery perforator flap (group A, n=4), saphenous artery concealed perforator flap (group B, n=5), and saphenous artery concealed perforator flap combined with sarcolemma (group C, n=5) models were established randomly on both hind limbs of pigs. The pigs and flap survival conditions were observed after operation. The percentage of flap survival area was calculated by Photoshop CS5 software at 5 days after operation. Ultrasonic Doppler technique was performed on the flaps before operation and at immediate, 3 days, and 5 days after operation to record the hemodynamic changes of the flaps. The hemodynamic indicators of saphenous artery (inner diameter, peak systoli velocity, resistance index, and blood flow) and saphenous vein (inner diameter, maximum velocity, and blood flow) were recorded. Results At 1 day after operation, 1 pig died of infection, and the rest survived until the experiment was completed. Finally, the 3 flaps of group A, 4 of group B, and 5 of group C were included in the study. The flaps of the 3 groups all showed swelling after operation, which was most significant at 3 days. At 3 days after operation, the flaps in group B showed partial bruising and necrosis. At 5 days after operation, the flaps in groups A and C were basically alive, and the necrosis area of flap in group B increased further. The percentage of flap survival area in groups A, B, and C were 99.7%±0.5%, 74.8%±26.4%, and 100%, respectively. The percentage of flap was significantly lower in group B than in groups A and C (P<0.05). There was no significant difference between groups A and C (P>0.05). There were significant differences in the hemodynamic indicators of saphenous artery and vein between different time points in 3 groups (P<0.05). There was no significant difference in each indicator between groups at each time point (P>0.05). Conclusion Both the saphenous artery concealed perforator flap and the flap combined with sarcolemma have stable blood flow, but the survival area of the latter was better than the former.

Citation： ZHAN Yi, ZHOU Xiang, LIANG Jing, LI Xubo, LI Wenwen, YANG Yutong, PAN Fushun, QI Jian. A preliminary study of the hemodynamics of concealed perforator flap in animal model with ultrasonic Doppler technique. Chinese Journal of Reparative and Reconstructive Surgery, 2023, 37(1): 46-51. doi: 10.7507/1002-1892.202208081 Copy
